Leica Piper 200 Red Beam Pipe Laser Package LG748710
Self-centring, rubber-tipped feet and a robust cast-aluminium housing give the Piper high reliability for use in pipeline construction. For above-ground tasks, an optional scope and mount kit provide a user-friendly solution for simple setup and operation. A unique design and wide, stable base make the unit easy to set up even in the tightest manhole inverts. Fully waterproof to the IP X8 protection standard, with a positive pressure nitrogen seal that delivers ultimate reliability in wet or humid conditions. Laser Beam Colour: Red. Wave Length: 635nm. Laser Class: 3R. Max. Average Radiant Power: 4.75mW. Working Range: Up to 200m. Grade Range: -10% to +25%. Self-Levelling Range: -15% to +30%. Line Movement: 6m at 30m. Battery: Li-Ion, up to 40 hours. Charging Time: 4 hours. Operating Temperature: -20 deg C to +50 deg C. Dimensions: 96mm x 267mm. Weight: 2.0kg. Housing: Cast Aluminium. Wireless Remote Distance: Front 150m, Back 10m. Self-Levelling Accuracy: +/-1.5mm at 30m. Auto Targeting: Yes. Warranty: 5 years. Brand: Leica Geosystems. Model: LG748710. Leica Piper 200 Red Beam pipe laser. Rugged carrying case. Remote control. Target assembly. Li-ion rechargeable battery. Battery charger with AC and 12V car adapter. Self-centering feet set (150mm / 6").
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Self-centring, rubber-tipped feet and a robust cast-aluminium housing give the Piper high reliability for use in pipeline construction.
- For above-ground tasks, an optional scope and mount kit provide a user-friendly solution for simple setup and operation.
- A unique design and wide, stable base make the unit easy to set up even in the tightest manhole inverts.
- Fully waterproof to the IP X8 protection standard, with a positive pressure nitrogen seal that delivers ultimate reliability in wet or humid conditions.
Specifications
- Laser Beam Colour: Red
- Wave Length: 635nm
- Laser Class: 3R
- Max. Average Radiant Power: 4.75mW
- Working Range: Up to 200m
- Grade Range: -10% to +25%
- Self-Levelling Range: -15% to +30%
- Line Movement: 6m at 30m
- Battery: Li-Ion, up to 40 hours
- Charging Time: 4 hours
- Operating Temperature: -20 deg C to +50 deg C
- Dimensions: 96mm x 267mm
- Weight: 2.0kg
- Housing: Cast Aluminium
- Wireless Remote Distance: Front 150m, Back 10m
- Self-Levelling Accuracy: +/-1.5mm at 30m
- Auto Targeting: Yes
- Warranty: 5 years
- Brand: Leica Geosystems
- Model: LG748710

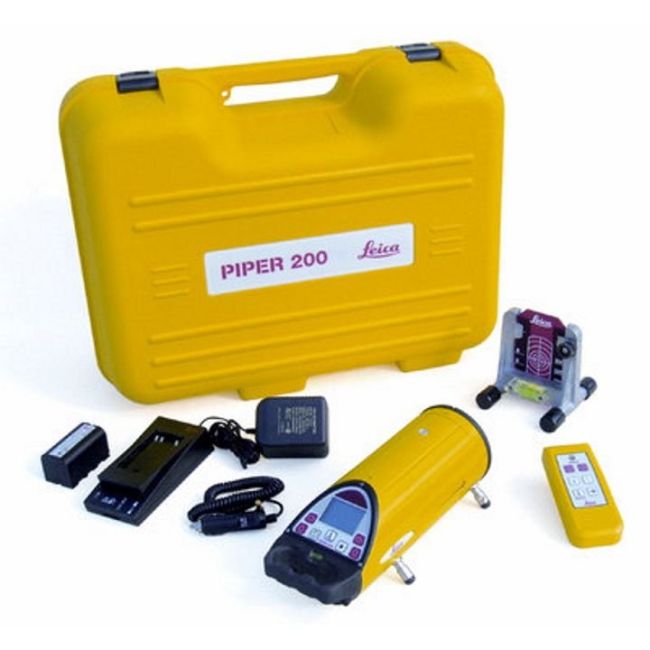

Includes
- Leica Piper 200 Red Beam pipe laser
- Rugged carrying case
- Remote control
- Target assembly
- Li-ion rechargeable battery
- Battery charger with AC and 12V car adapter
- Self-centering feet set (150mm / 6")
- MPN
- LG748710
- Manufacturer
- Leica
