Features

• Self-levels horizontally and also supports manual slope setting in one axis, adding versatility for sloped grading applications.
• Includes an H.I. (height of instrument) elevation alert that warns the operator if the unit is bumped or knocked out of level during use.

Specifications

• Model: Rugby 620
• Brand: Leica Geosystems
• Range (Diameter): 1,100 m
• Self-Levelling Accuracy: +/- 2.2 mm @ 30 m (defined at 25 deg C)
• Self-Levelling Range: +/- 5 degrees
• Rotation Speed: 10 rps
• Laser Diode Type / Class: 635 nm / Class 1
• Dimensions (H x W x D): 212 x 239 x 192 mm
• Weight With Batteries: 2.6 kg
• Protection Class (Splash Water / Dust Proof): IP67
• Operating Temperature Range: -20 to +50 deg C

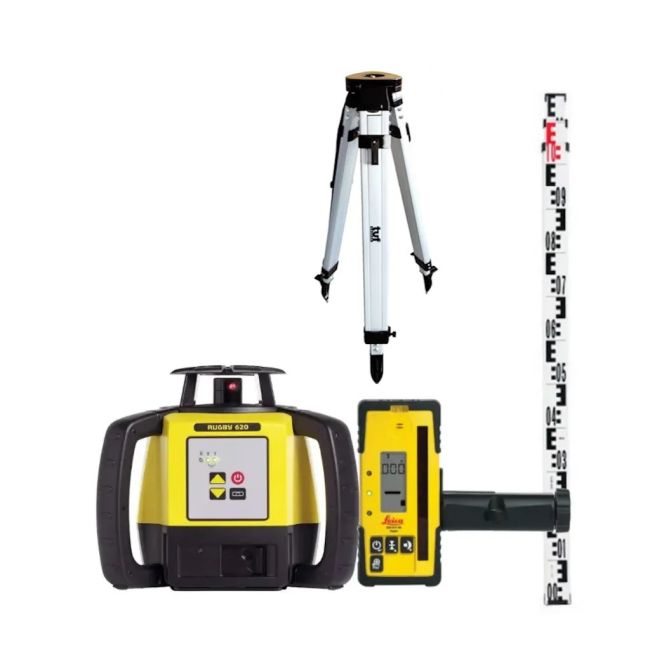

Includes

• Leica Rugby 620 laser level
• Rod-Eye 120 receiver
• Aluminium tripod
• Graduated staff
