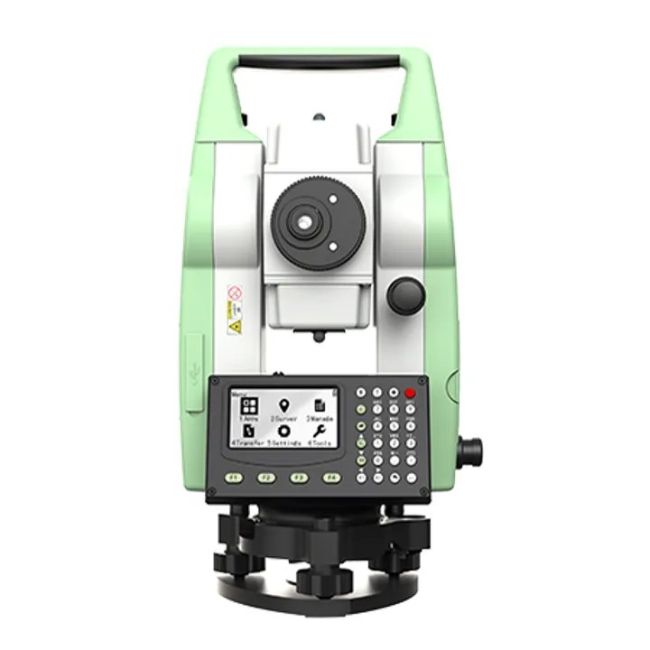

Leica TS01 5 Inch Manual Total Station LG945232
Serves as the entry-level model in Leica Geosystems' Total Station range. Designed to let users carry out measurement tasks with ease and simplicity. Brand: Leica Geosystems. Model: LG945232. Accuracy (Hz and V): 5 seconds. Display Resolution: 1 second (0.1 mgon). Dual Axis Compensation: Yes. Compensator Range: +/- 8 minutes. Longitudinal Level Sensitivity: 2 minutes per 2 mm. Range to Prism (GPR1): 3,000 m. Range to Non-Prism: 500 m. Accuracy to Single Prism: 2 mm + 2 ppm. Accuracy to Non-Prism: 3 mm + 2 ppm. Measurement Time, Prism Mode: Standard 1.5 s, Quick 1.1 s, Tracking 0.15 s. Measurement Time, Non-Prism Mode: Standard 1.4 s, Quick 1.1 s. Laser Dot Size at 50 m: 12 mm x 24 mm. Telescope Magnification: 28x. Telescope Focusing Range: 1.5 m to Infinity. Telescope Field Of View: 1 degree 30 minutes (1.66 gon). Field Width At 100 M: 2.8 m. Reticule Illumination: Adjustable.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Serves as the entry-level model in Leica Geosystems' Total Station range.
- Designed to let users carry out measurement tasks with ease and simplicity.
Specifications
- Brand: Leica Geosystems
- Model: LG945232
- Accuracy (Hz and V): 5 seconds
- Display Resolution: 1 second (0.1 mgon)
- Dual Axis Compensation: Yes
- Compensator Range: +/- 8 minutes
- Longitudinal Level Sensitivity: 2 minutes per 2 mm
- Range to Prism (GPR1): 3,000 m
- Range to Non-Prism: 500 m
- Accuracy to Single Prism: 2 mm + 2 ppm
- Accuracy to Non-Prism: 3 mm + 2 ppm
- Measurement Time, Prism Mode: Standard 1.5 s, Quick 1.1 s, Tracking 0.15 s
- Measurement Time, Non-Prism Mode: Standard 1.4 s, Quick 1.1 s
- Laser Dot Size at 50 m: 12 mm x 24 mm
- Telescope Magnification: 28x
- Telescope Focusing Range: 1.5 m to Infinity
- Telescope Field Of View: 1 degree 30 minutes (1.66 gon)
- Field Width At 100 M: 2.8 m
- Reticule Illumination: Adjustable
- MPN
- LG945232
- Manufacturer
- Leica
