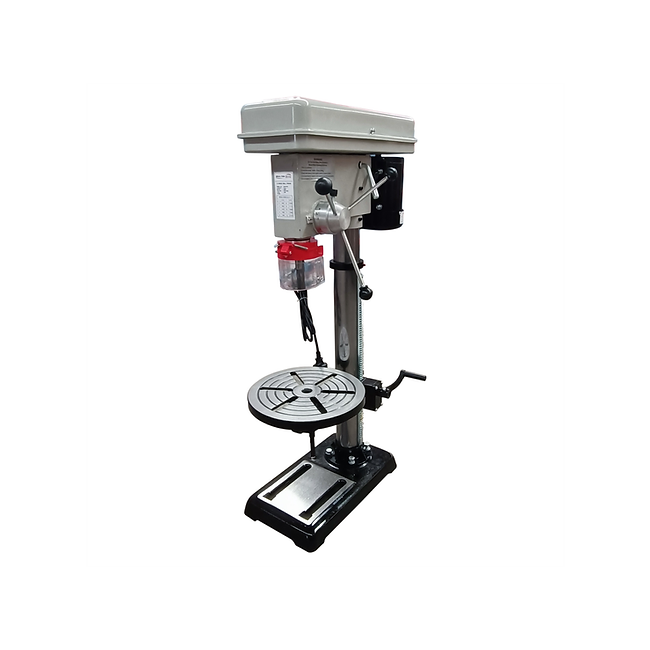

Millers Falls 12 Spd Bench Drill 16MM-3/4HP ZJB4116A
Availability:
Special Order
SKU
ZJB4116A
$429.95
Delivery Availability
Delivery Cost & Shipping Time
Millers Falls 350MM 6.5HP Floor Saw W/Millers Falls Engine CPQ300SHC
was
$939.95
Special Price
$599.00
Millers Falls 450MM 13.5HP Floor Saw W/Briggs & Stratton Engine CPQ450BS
was
$1,975.00
Special Price
$1,299.00
Features
- Powered by a 550W 4-pole motor for consistent and efficient drilling
- Motor operates at 1440 rpm for stable and reliable performance
- 3–16mm chuck size accommodates a variety of drill bits
- 16mm drilling capacity suitable for a wide range of materials
- MT2 Morse taper ensures secure spindle fit
- 340mm swing allows for handling larger workpieces
- 80mm spindle travel offers flexibility in drilling depth
- Adjustable spindle-to-table distance up to 450mm for varied workpiece sizes
- Stable 410mm x 240mm base ensures support during operation
- 310mm round table with rack and pinion for smooth height adjustment
- 12 adjustable spindle speeds ranging from 210rpm to 2200rpm for precision control
- 990mm overall height suitable for most workshop setups
Specifications
- Model: ZJB4116A
- Motor Wattage: 550W, 4-pole
- Motor Speed: 1440 rpm
- Chuck Size: 3–16mm
- Drilling Capacity: 16mm
- Morse Taper: MT2
- Swing: 340mm
- Spindle Travel: 80mm
- Max Distance Spindle to Table: 450mm (adjustable)
- Base Size: 410mm x 240mm
- Table Size: 310mm round
- Rack & Pinion: Yes
- Spindle Speeds: 12 settings (210rpm – 2200rpm)
- Overall Height: 990mm
- Net Weight: 27kg
- Shipping Dimensions: 760mm x 490mm x 260mm
- Shipping Weight: 30kg
| MPN | ZJB4116A |
|---|---|
| Manufacturer | Millers Falls |
