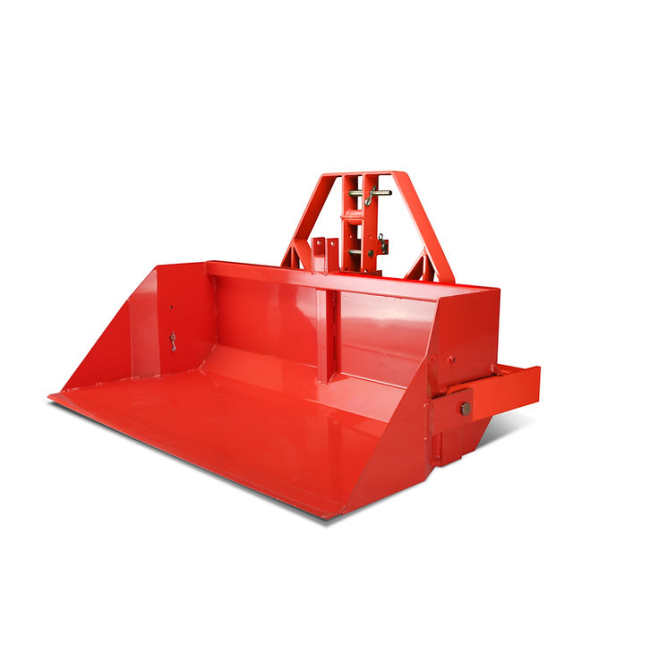

Millers Falls 1400MM Rear Mounted Tractor Bucket FITB45H
Availability:
In stock
SKU
FITB45H
$1,025.00
Delivery Availability
Delivery Cost & Shipping Time
Millers Falls 350MM 6.5HP Floor Saw W/Millers Falls Engine CPQ300SHC
was
$939.95
Special Price
$599.00
Millers Falls 450MM 13.5HP Floor Saw W/Briggs & Stratton Engine CPQ450BS
was
$1,975.00
Special Price
$1,299.00
Features
- 140 cm welded blade provides reliable and durable material handling
- Hydraulic tipping mechanism allows efficient load dumping from the tractor cabin
- Compact design ensures easy storage and enhanced manoeuvrability
- Heavy-duty reinforced steel construction supports demanding earthworks
- Ideal for transporting sand, soil, rocks, garden materials, and tools
- Sturdy support bar enhances overall stability and security during operation
- Equipped with standard hydraulic cylinder and two 1.5 m hydraulic hoses with 1/2" connectors
- Safety pin prevents accidental tipping while on the road
- Fits all standard Cat 1 and Cat 2 three-point linkages
- Innovative mid-lift weight distribution reduces stress on the hydraulic cylinder
- Powder-coated finish offers long-term corrosion resistance and easy maintenance
Specifications
- Model: FITB45H
- Bucket width: 1432 mm
- Bucket height: 444 mm
- Bucket depth: 720 mm
- Capacity: 0.34 cu.m
- Payload capacity: 500 kg
- Maximum tractor power: 50 HP
- Tipping angle: 80°
- Min./Max. relief pressure: 120 – 150 bar
- Min./Max. hydraulic flow: 18 – 22 l/min
- Frame tubing size: 100 x 100 x 8 mm
- Overall dimensions: 1430 x 870 x 880 mm
- Packing dimensions: 1450 x 720 x 430 mm
- Weight: 135 kg
| MPN | FITB45H |
|---|---|
| Manufacturer | Millers Falls |
