Features

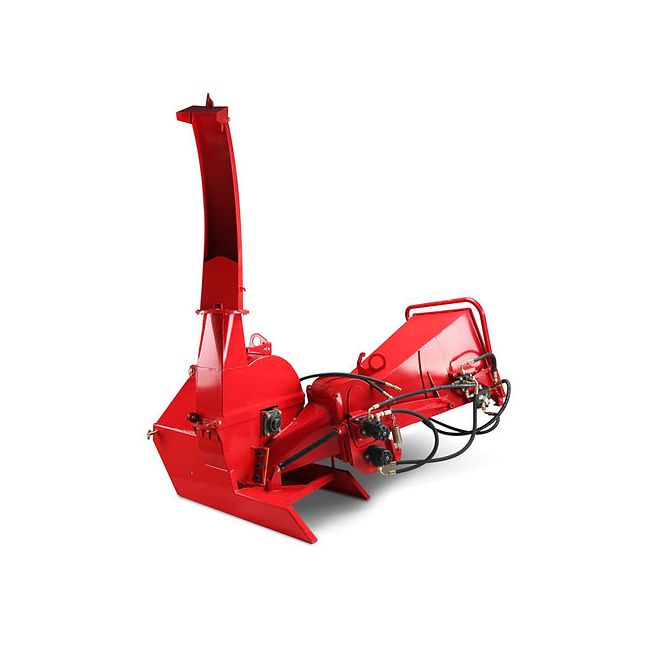

• 6” (150mm) PTO-driven wood chipper with hydraulic power feed for tractors with three-point linkage
• Twin feed rollers powered by two hydraulic motors for aggressive and consistent material intake
• Utilises tractor auxiliary hydraulics to drive feed motors for efficient operation
• Heavy-duty fabricated steel construction for durability in demanding conditions
• Large 760mm diameter rotor with 82kg rotor weight for high tip speed and powerful chipping performance
• Four precision-cut, hardened reversible tool steel knives for extended blade life
• Adjustable bed blade and accessible anvil for simple and quick maintenance
• Integrated blower paddles with twig breakers for improved chip consistency and discharge force
• 360° rotating discharge chute with adjustable top deflector for controlled chip direction
• Safety bar system to quickly disengage feed rollers when required
• Powered via supplied shear pin PTO shaft for smooth power transmission
• Compatible with 40–85HP tractors with auxiliary hydraulic outputs

Specifications

• Maximum Chipping Capacity: 150mm (6”)
• Overall Dimensions: 1270 × 1320 × 1880 mm
• Chipper Housing Opening: 165 × 255 mm
• Hopper Opening: 635 × 635 mm
• Rotor Size: 760 mm
• Number of Rotor Knives: 4
• Rotor Weight: 82 kg
• Feeding System: Twin Hydraulic Motor Power Feed
• Discharge Hood Rotation: 360°
• Discharge Hood Height: 1880 mm
• Rated PTO RPM: 540–1000
• Power Required: 40–85HP
• Product Weight: 510 kg
• Shipping Dimensions: 1250 × 1000 × 2500 mm
• Shipping Weight: 540 kg

Includes

• Shear Pin PTO Shaft
