Features

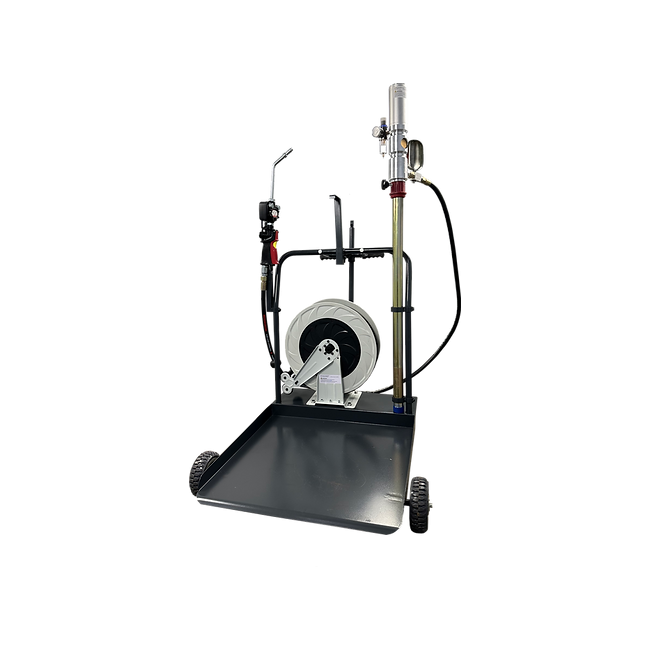

• Heavy-duty steel frame with durable wheels for reliable mobility in workshops
• Pneumatic pump with 5:1 pressure ratio ideal for medium to high viscosity oils
• Compatible with air compressors operating between 3–8 bar (45–115psi)
• Delivers oil at a flow rate of 18L/min for fast and efficient dispensing
• Pulsation dampener ensures smooth and consistent oil flow
• Digital oil flow meter gun with ±0.5% accuracy and 4 unit conversions: Litre, Gallon, Pint, Quart
• 5-digit display for precise volume monitoring
• Anti-drip nozzle prevents spills and waste during operation
• 360° rotating spout offers flexibility in oil discharge
• Handles oil viscosity from 10 to 5000 mPas, suitable for various applications
• Enables direct use with up to 220L drums, eliminating the need for oil transfers
• Reduces mess, saves time, and lowers oil waste costs

Specifications

• Drum Size: Up to 220 litres
• Pressure Ratio: 5:1
• Pulsation Dampener: Included
• Oil Outlet: ½ inch
• Required Air Pressure: 45–115psi (3–8 bar)
• Air Inlet: ¼ inch
• Flow Rate: 18L/min
• Pump Suction Tube Length: 940mm (37 in)
• Pump Suction Tube Diameter: 42mm (1.65 in)
• Hose Reel Working Pressure: Up to 2320psi
• Hose Length: 15m
• Hose Diameter: ½ inch
• Digital Oil Meter Gun Accuracy: ±0.5%
• Oil Viscosity Range: 10–5000 mPas
• Working Pressure Range for Meter Gun: 8–725psi (0.5–50 bar)
• Unit Conversion: Litre, Gallon, Pint, Quart
• Volume Monitoring: 5-digit display
• Power: 2 x AA 1.5V batteries (included)
• Packaging Dimensions:
• Carton 1: 134cm x 16cm x 17cm (12.5kg)
• Carton 2: 86cm x 81cm x 12cm (24kg)
• Carton 3: 51cm x 23cm x 56cm (19kg)
