Features

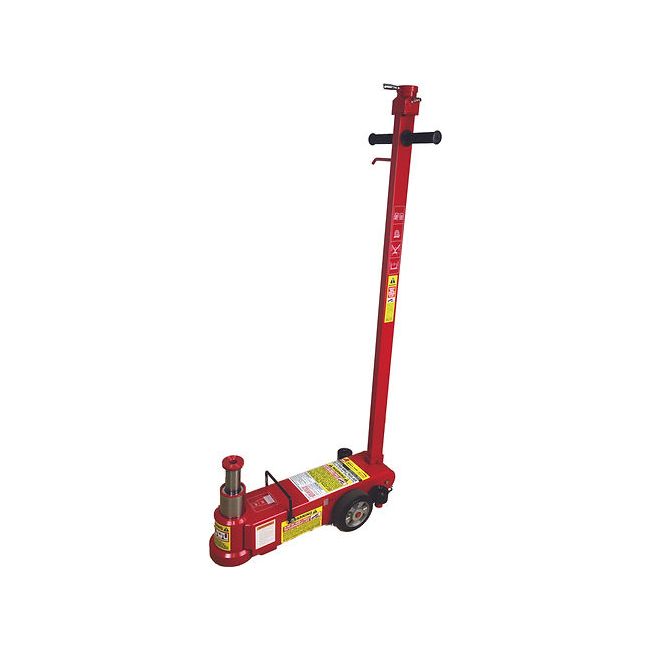

• Dual-stage air hydraulic truck jack with 25T (25,000 kg) first stage and 10T (10,000 kg) second stage capacity.
• Ideal for lifting trucks, buses, and heavy industrial machinery.
• Quieter operation than traditional truck jacks for improved workshop comfort and safety.
• First stage hydraulic lift of 97 mm and second stage lift of 95 mm.
• Adjustable lifting range from 185 mm to 497 mm for versatile vehicle compatibility.
• Includes 75 mm and 45 mm adaptors for varying ground clearances.
• Air-powered system operating at 0.9–1.2 MPa (145–175 psi) for fast, smooth, and efficient lifting.
• Durable construction designed for demanding heavy-duty environments.
• Portable design with 1380 mm handle length for easy manoeuvrability.
• Includes handle box for convenient storage and transport.

Specifications

• Model: LHTJM2510
• First Stage Capacity: 25,000 kg (25T)
• Second Stage Capacity: 10,000 kg (10T)
• First Stage Hydraulic Lift: 97 mm
• Second Stage Hydraulic Lift: 95 mm
• Minimum Height: 185 mm
• Maximum Height: 497 mm
• Adaptors: 75 mm and 45 mm
• Handle Length: 1380 mm
• Operating Air Pressure: 0.9–1.2 MPa (145–175 psi)
• Chassis Dimensions: 770 x 282 x 185 mm
• Nett Weight: 53 kg
• Gross Weight: 59 kg
• Package Size: 840 x 300 x 270 mm
• Handle Box Dimensions: 1390 x 280 x 110 mm
