Features

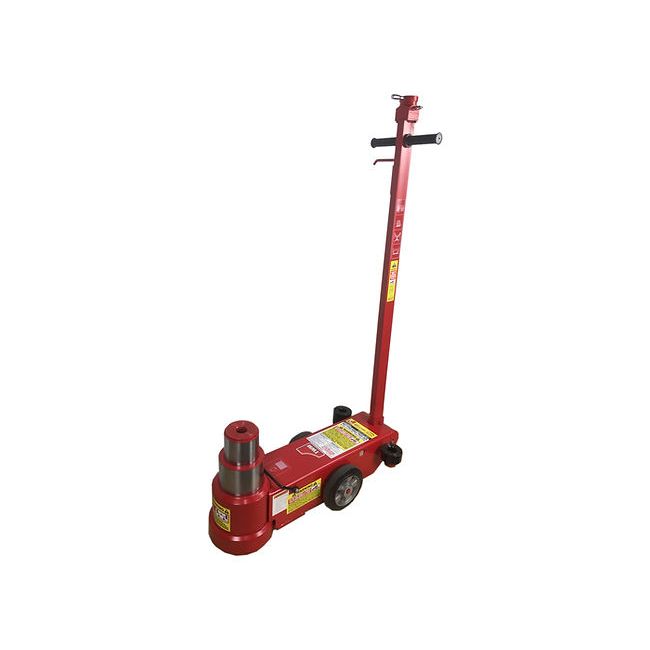

• Dual-stage air hydraulic truck jack with 80T (80,000 kg) first stage and 50T (50,000 kg) second stage capacity.
• Engineered for lifting heavy trucks, buses, and large industrial machinery.
• First stage hydraulic lift of 111 mm and second stage lift of 102 mm for smooth, controlled operation.
• Adjustable lifting range from 230 mm to 565 mm to suit varying vehicle clearances.
• Quieter operation than conventional truck jacks for improved workshop comfort and safety.
• Includes 75 mm and 45 mm adaptors for enhanced lifting versatility.
• Air-powered hydraulic system operating at 0.9–1.2 MPa (145–175 psi) for efficient, low-effort lifting.
• Heavy-duty construction built for demanding industrial environments.
• 1380 mm handle length for improved control and manoeuvrability.
• Portable design with manageable weight for transport and storage.

Specifications

• Model: LHTJM8050
• First Stage Capacity: 80,000 kg (80T)
• Second Stage Capacity: 50,000 kg (50T)
• First Stage Hydraulic Lift: 111 mm
• Second Stage Hydraulic Lift: 102 mm
• Minimum Height: 230 mm
• Maximum Height: 565 mm
• Adaptors: 75 mm and 45 mm
• Handle Length: 1380 mm
• Operating Air Pressure: 0.9–1.2 MPa (145–175 psi)
• Chassis Dimensions: 930 x 340 x 230 mm
• Nett Weight: 106 kg
• Gross Weight: 115 kg
• Packing Size: 980 x 390 x 230 mm
• Handle Box Dimensions: 1390 x 280 x 110 mm
