Features

• Delivers the highest level of sensitivity for reliable magnetic detection.
• Features an ergonomic and durable pistol grip design for comfortable, extended use.
• Rated IP54, giving it resistance to dust and water in outdoor field conditions.
• Provides easy access for quick battery removal and replacement.
• Uses an expanding bar graph display to indicate polarity (positive or negative) and relative signal strength.
• Equipped with HeliFlux sensors for accurate magnetic detection.
• Built with modular construction and high-performance components for reliability and durability.
• Makes it easy to locate metallic survey markers, pins, and nails.
• Well suited to utilities, surveying, water and sewer, oil and gas, construction, and similar applications.

Specifications

• Brand: Schonstedt
• Model: MAGGIE
• APN: 9319499063450
• Audio Output: Signal frequency increases with gradient field intensity; idle frequency is 10 Hz
• Display Output: Expanding bar graph indicating polarity and relative signal strength
• Battery Indicator: 4-Segment LCD
• Gain: 4-Level LCD - Low, Medium, High, Extra High
• Gain Memory: Defaults To Medium When Powering Off/On
• Volume: 3 Levels - Muted, Medium, High
• Input Power: One 9V Battery
• Battery Life: 24 Hours (Intermittent Use)
• Operating Temperature: -25 deg C to 60 deg C
• Overall Length: 83 cm
• Nominal Sensor Spacing: 50 cm
• Weight: 1.2 kg
• Material: High-Impact ABS
• Dust And Water Protection: Rated IP54
• Warranty: 7 Years

Includes

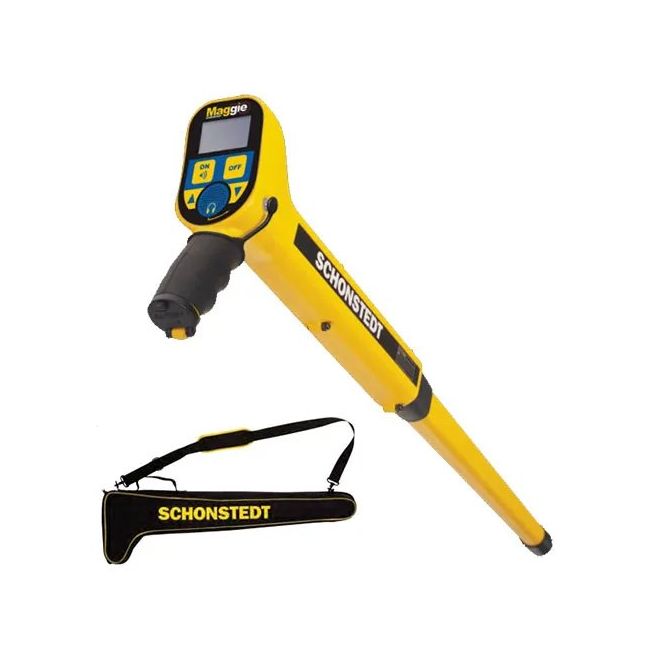

• 1 x Schonstedt MAGGIE Magnetic Locator
• 1 x Padded Carrying Case With Strap (p/n: MA50000)
• 1 x 9V Battery (Installed In Unit)
