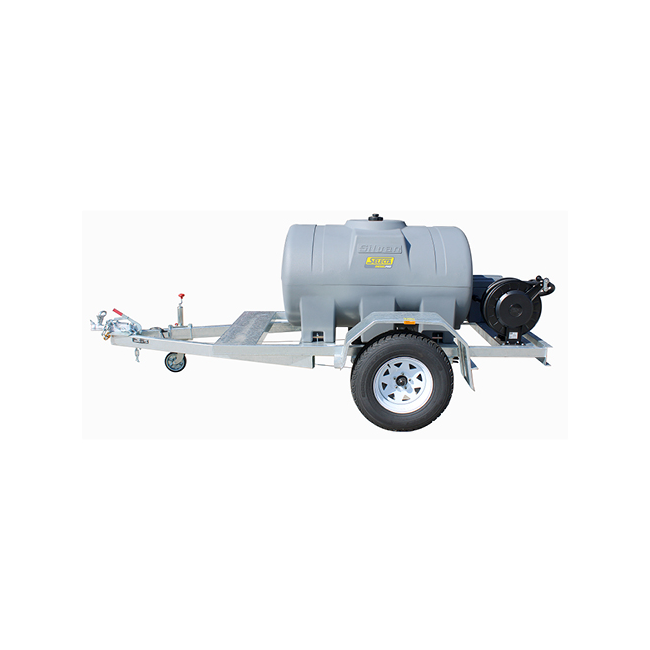

Silvan 1100L Diesel Trailer STF1000D-1-1
ROVER Vehicle compliant and certified with VIN plate attached, making this trailer fully road-registerable for hassle-free on-road fuel transport — registration is the responsibility of the owner. 1,100 L UV-stabilised polyethylene tank features an internal baffle to significantly reduce liquid surge during transit, improving stability and safety on both sealed and unsealed roads. Bottom suction with a protection plate safeguards the tank outlet from ground strike damage during off-road and farm use. Hot-dipped galvanised trailer frame delivers superior corrosion resistance and long-term structural durability in harsh agricultural and worksite environments. Heavy-duty leaf spring suspension with 5-stud Ford wheels and 235/15 All Terrain tyres handles demanding terrain with confidence. ADR-approved mechanical overrun disc brakes provide compliant, reliable stopping performance when towing at capacity. Italian Piusi 50 L/min pump secured within a lockable UV-stabilised Australian-made poly storage box, protecting the pump from weather, dust, and theft. Auto shut-off trigger with swivel prevents overfilling and fuel spillage during refuelling operations. Heavy-duty Italian Piusi retractable spring-rewind hose reel with simple hose guide and protected latch mechanism reduces hose wear, prevents injury, and speeds up refuelling. 10 m x 1" hose provides generous reach for refuelling vehicles and machinery without repositioning the trailer. Dual power connection points — 7-pin electrical connector and Anderson plug — allow the pump to be powered from the tow vehicle at the front of the trailer or from the storage box via the supplied auxiliary cable. Full LED lighting suite including tail lights, indicators, and registration plate light for safe road use. Adjustable jockey wheel and 50 mm tow hitch for straightforward coupling and uncoupling. Tank capacity: 1,100 L. Tank material: UV-stabilised polyethylene with internal baffle and bottom suction protection plate. Pump: Italian Piusi, 50 L/min. Trigger: Auto shut-off with swivel. Hose reel: Piusi retractable spring-rewind, 10 m x 1" hose. Trailer finish: Hot-dipped galvanised. Suspension: Heavy-duty leaf spring. Wheels: 5-stud Ford pattern. Tyres: 235/15 AT (All Terrain). Tow hitch: 50 mm. Brakes: ADR-approved mechanical overrun disc brakes. Lighting: LED tail lights, indicators, and registration plate light. Electrical: 7-pin connector + Anderson plug with auxiliary cable. Storage box: Lockable UV-stabilised Australian-made poly. Compliance: ROVER Vehicle compliant and certified with VIN plate. Dimensions (H x W x L): 1,530 x 1,820 x 3,800 mm. Weight: 440 kg.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- ROVER Vehicle compliant and certified with VIN plate attached, making this trailer fully road-registerable for hassle-free on-road fuel transport — registration is the responsibility of the owner
- 1,100 L UV-stabilised polyethylene tank features an internal baffle to significantly reduce liquid surge during transit, improving stability and safety on both sealed and unsealed roads
- Bottom suction with a protection plate safeguards the tank outlet from ground strike damage during off-road and farm use
- Hot-dipped galvanised trailer frame delivers superior corrosion resistance and long-term structural durability in harsh agricultural and worksite environments
- Heavy-duty leaf spring suspension with 5-stud Ford wheels and 235/15 All Terrain tyres handles demanding terrain with confidence
- ADR-approved mechanical overrun disc brakes provide compliant, reliable stopping performance when towing at capacity
- Italian Piusi 50 L/min pump secured within a lockable UV-stabilised Australian-made poly storage box, protecting the pump from weather, dust, and theft
- Auto shut-off trigger with swivel prevents overfilling and fuel spillage during refuelling operations
- Heavy-duty Italian Piusi retractable spring-rewind hose reel with simple hose guide and protected latch mechanism reduces hose wear, prevents injury, and speeds up refuelling
- 10 m x 1" hose provides generous reach for refuelling vehicles and machinery without repositioning the trailer
- Dual power connection points — 7-pin electrical connector and Anderson plug — allow the pump to be powered from the tow vehicle at the front of the trailer or from the storage box via the supplied auxiliary cable
- Full LED lighting suite including tail lights, indicators, and registration plate light for safe road use
- Adjustable jockey wheel and 50 mm tow hitch for straightforward coupling and uncoupling
Specifications
- Tank capacity: 1,100 L
- Tank material: UV-stabilised polyethylene with internal baffle and bottom suction protection plate
- Pump: Italian Piusi, 50 L/min
- Trigger: Auto shut-off with swivel
- Hose reel: Piusi retractable spring-rewind, 10 m x 1" hose
- Trailer finish: Hot-dipped galvanised
- Suspension: Heavy-duty leaf spring
- Wheels: 5-stud Ford pattern
- Tyres: 235/15 AT (All Terrain)
- Tow hitch: 50 mm
- Brakes: ADR-approved mechanical overrun disc brakes
- Lighting: LED tail lights, indicators, and registration plate light
- Electrical: 7-pin connector + Anderson plug with auxiliary cable
- Storage box: Lockable UV-stabilised Australian-made poly
- Compliance: ROVER Vehicle compliant and certified with VIN plate
- Dimensions (H x W x L): 1,530 x 1,820 x 3,800 mm
- Weight: 440 kg
- MPN
- STF1000D-1-1
- Manufacturer
- Silvan
