Features

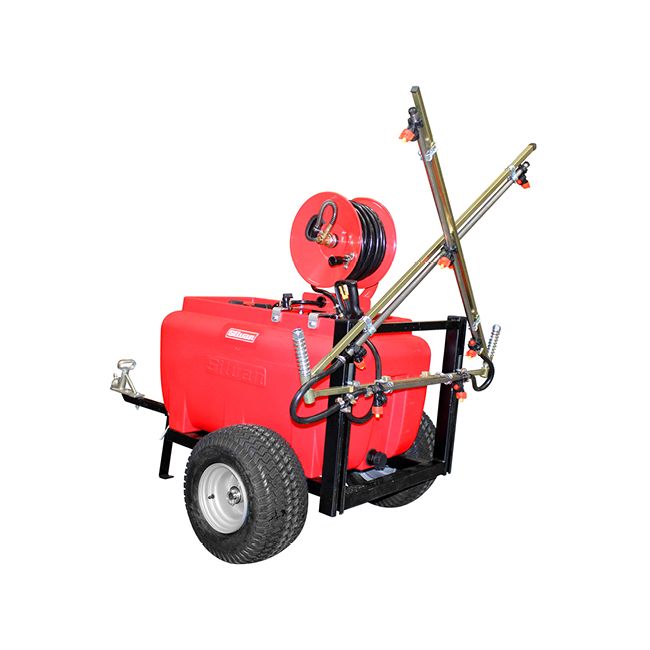

• FULLY ASSEMBLED AND FACTORY TESTED TRAILED 200LHI FLOW 12V SPRAYER is ready for immediate use and can be attached to Side by Side, ATV or Utility using to 50mm coupling.
• Includes Professional Varijet Spraygun With A30M Eco Hosereel.
• Ideal for roadside spraying or spot spraying from a Side by side, carryall, trailer, spray distance up to 10m.
• Adjustable Pressure Regulator, Glycerine Filled Gauge.
• For pressure and flow control for the spray gun and any optional spray booms.

Specifications

• Tank Size (l):
• 200
• Pump Size (l/min):
• Max Pressure:
• 60psi
• Product Weight (kg):
• Height / Width / Length (mm):
• 925 / 580 / 1050
• Tank :
• Impact resistant UV Stabilized Polytuff Tank with moulded 8mm brass inserts in base of tank for securing to the trailer. Fitted with a rear 1 " drain plug assembly and a 255mm breather lid basket strainer and external suction filter
• Trailer :
• Heavy duty and powder coated with extendable drawbar (0 - 400mm) and Parking stand. A 50mm ball Lockable Coupling and Solid steel 25mm axle with Steel rims. 4 ply Pneumatic tyres (18 x 8.50-8)
• Pump Specifications :
• A 12V DC electric Aquatec pump, Model DDP-552A, auto bypass with electric pressure sensing switch. Pulsation free. Open flow up to 7 litres/minute, maximum pressure 120psi. An On/Off switch, 3mtr of battery cable with alligator clips
• Hose Reel :
• Powder coated steel. Lockable hub. 30m x 10mm ID hose with the ability to mount in 4 positions - North/South or East/West position
• Spray Gun :
• Professional Varijet spray gun that delivers a spray pattern from a straight stream to a conical mist by rotating the barrel
• Spray Boom :
• A 4 m spray width with break back device protects boom if an obstruction is hit
