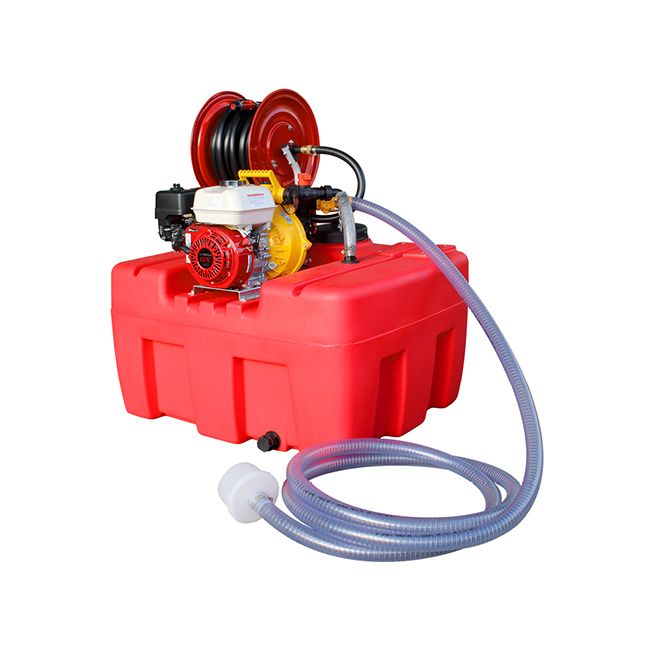

Silvan 400L SQUAT PAK FAST FILL FIREFIGHTER SQF400D-4

Tank Size (l):. 400. Pump Size (l/min)::. 415. Max Pressure:. Product Weight (kg):. Height / Width / Length (mm):. 1090 / 1060 / 900. Tank :. A 400L UV Stabilised Impact resistant Polytuff tank with internal baffle to reduce surge when travelling. A 255mm screw type lid and strainer with a drain Bung for easy empty and cleaning. Engine :. A 4 stroke, 5.5 Hp GX160 Honda 163 (cc) with manual recoil rope start. Low oil protection. The oil used is SAE 10W 30 (600ml). A twin stage - foam prefilter with paper final element. Fuel Tank :. A capacity 3.1 Litres (Unleaded) with approximate fuel consumption @ full load 1.7L. Pump Specifications :. A Viton equipped internal seal, O-rings & gaskets. Fitted for improved chemical resistance. Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty. Pump Performance :. A maximum output 415 (L/min) and Max Pressure 80 (PSI). A direct coupled single centrifugal impeller. Inlet 1 x 1.5". Outlet 2 x 1.5" (Spare). 2 x 1" used for the Hose reel & 3-way valve to deliver water back to the tank. Hose Reel :. Manual wind with Heavy duty powder coated steel. A 30m " ID delivery hose with adjustable nozzle and an approximate flow rate 20L/min. At full load, distance of water directed from the adjustable nozzle can be up to approximately 20m. Tank Run Time (full Of Water) :. Approximately 20 minutes. Dam Fill Kit (factory Fitted) :. A 6m suction hose and filter with camlocks for easy use and storage. 1 x 3-way valve fitted to the pump that changes the position of suction from the tank to using Dam fill kit. 1 x Ball valve fitted to deliver water from the pump to the tank. Other :. Engine has been filled with oil but no fuel. Do not run dry. Warranty :. 12 months.
