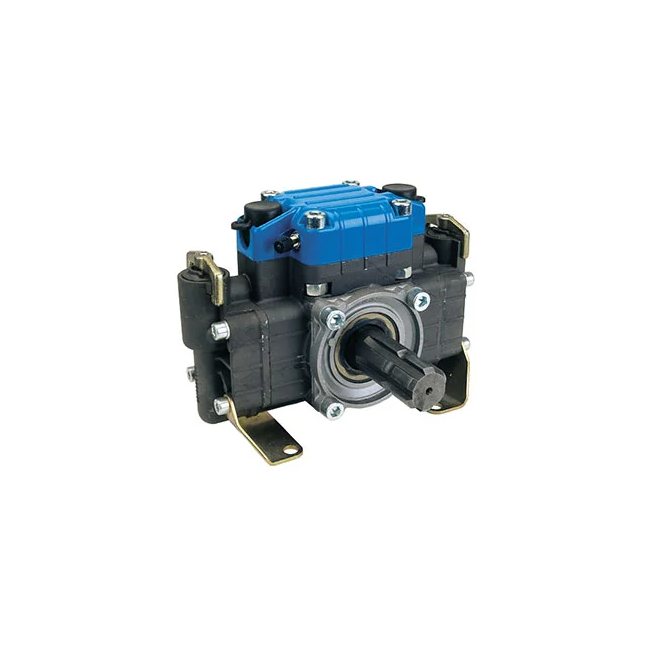

Silvan BP20/15 Diaphragm Pump CBP02015
or 4 interest-free payments of $330.00 with Afterpay or Zip
Designed for 540 RPM operation with self-priming capability. Engineered to run dry without causing damage. No special tools required for maintenance or servicing. Supplied with hose connections, mounting base plates, and 1 3/8” six-splined shaft. Keyed shaft versions available for select models. Reliable, tough diaphragm pump ideal for demanding applications. Pump Flow Rate: 19 L/min. Maximum Pressure: 15 Bar / 218 psi. Product Weight: 7.3kg. Dimensions (H x W x L): 174mm x 260mm x 224mm. Diaphragms: 2. HP Required at Max Pressure: 3.3. Output @ 540 RPM: 19 L/min.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Designed for 540 RPM operation with self-priming capability
- Engineered to run dry without causing damage
- No special tools required for maintenance or servicing
- Supplied with hose connections, mounting base plates, and 1 3/8” six-splined shaft
- Keyed shaft versions available for select models
- Reliable, tough diaphragm pump ideal for demanding applications
Specifications
- Pump Flow Rate: 19 L/min
- Maximum Pressure: 15 Bar / 218 psi
- Product Weight: 7.3kg
- Dimensions (H x W x L): 174mm x 260mm x 224mm
- Diaphragms: 2
- HP Required at Max Pressure: 3.3
- Output @ 540 RPM: 19 L/min
- MPN
- CBP02015
- Manufacturer
- Silvan
