Features

• Designed exclusively for direct fitment to Aquatec pumps with 5D connectors, ensuring precise compatibility and a secure, leak-free connection
• Enables the operator to fine-tune output pressure for accurate application rates across spot spraying, spray gun, boomless nozzle, and spray boom configurations
• Returns excess pump flow back to the tank via the bypass circuit, providing continuous agitation during operation
• 2-outlet configuration supports simultaneous connection of a hose reel and boom, with a dedicated bypass regulator outlet — offering flexible multi-function spraying setups
• Compatible with both the DDP-550 (20 L/min) and DDP-555 (14 L/min) Aquatec pump models
• Bypass fitting requires a hole to be drilled into the tank for installation — all necessary hardware is supplied

Specifications

• Part number: RP1-24-6
• Compatible pumps: DDP-550 (20 L/min) and DDP-555 (14 L/min)
• Connector type: 5D (Aquatec direct fit)
• Outlets: 2 x ½" male BSP 5D outlets + 1 x ½" bypass elbow
• Bypass hose length supplied: 300 mm

Includes

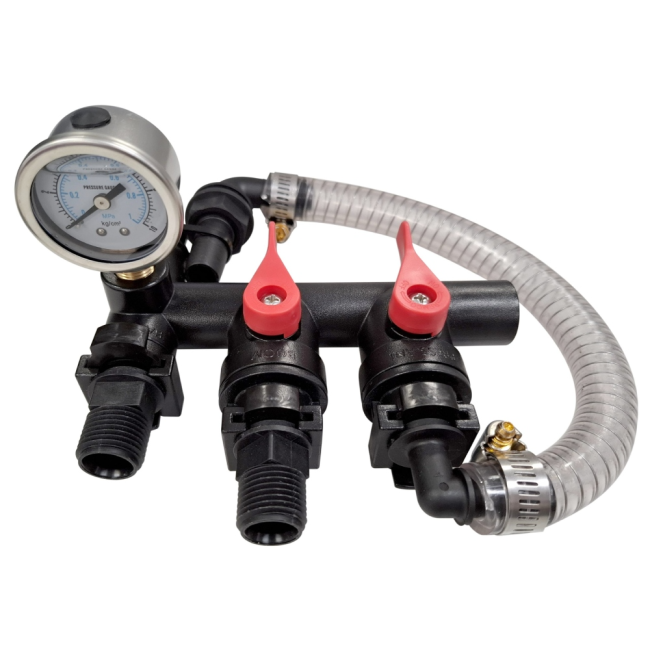

• 1 x Pressure manifold and gauge kit
• 300 mm bypass hose
• Hose clamps
• Bypass tank fitting
