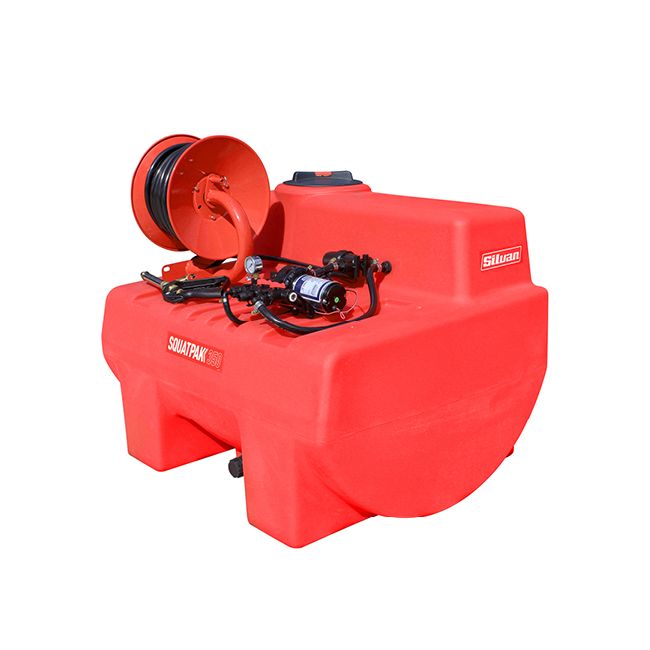

Silvan Squatpak 350L 12V 30M Hosereel Sprayer TP350-S10R-1
Compact, versatile 350L spraying solution designed for UTVs, buggies, utilities and other compact work vehicles. Ideal for fence line, roadside and spot spraying, delivering reliable performance in a practical, space-efficient design. The PolyTuff step tank has an integrated sump and twin internal baffles that reduce liquid surge while travelling, improving stability and spraying consistency. The sump assists with complete tank drainage and easier cleaning after use. Calibrated fill markings let operators accurately gauge the volume of liquid loaded. Bottom inserts allow the tank to be permanently fixed to a tray, or optional forklift skids (code 430-115, 4 x M10) can be attached, with carry points under the front and rear. The Aquatec 12-volt DC electric pump has an electric pressure sensing switch and draws up to 11 amps. The pump uses chemical-resistant Viton valves and a Santo diaphragm, with an on/off switch and 3m of battery cable fitted with alligator clips. A 3-outlet delivery manifold connects to the hose reel with a pressure gauge, provides a spare 5D 1/2" BSP male-thread outlet with an on/off lever valve for an optional towbar boom, and includes a bypass outlet with a lever valve to adjust pressure to the spray gun or towbar boom and reduce pump pulsation. 3-stage filtration protects the pump and spray components. The JetPro spray gun adjusts from a straight stream to a conical spray pattern and has a lockable trigger. The 30-metre ECO hose reel has powder-coated metal construction with a lockable hub and locking pin, giving an effective spray distance of up to 10 metres. Optional forklift channels (pair, code 430-115) can be fitted north/south or east/west, with bolts and washers included for DIY fitment. Suited to weed control, fence lines, roadside maintenance and general property spraying for professional and rural users. Brand: Silvan. SKU: TP350-S10R-1. Tank Capacity: 350L. Pump Model: Aquatec DDP-555. Pump: 12V DC electric, 14L/min open flow, 4 Bar / 60 psi max pressure. Hose Reel Model: 180G03010B. Hose Reel: Supplied with 30m x 10mm ID ag hose. Spray Gun Model: 410-53, supplied with D8 nozzle. Compatible Optional Towbar Booms: RP1-33, RP1-35, RP1-36. Dimensions (H/W/L): 920 / 835 / 1009mm. Product Weight: 41kg. Warranty: 12 months.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Compact, versatile 350L spraying solution designed for UTVs, buggies, utilities and other compact work vehicles.
- Ideal for fence line, roadside and spot spraying, delivering reliable performance in a practical, space-efficient design.
- The PolyTuff step tank has an integrated sump and twin internal baffles that reduce liquid surge while travelling, improving stability and spraying consistency.
- The sump assists with complete tank drainage and easier cleaning after use.
- Calibrated fill markings let operators accurately gauge the volume of liquid loaded.
- Bottom inserts allow the tank to be permanently fixed to a tray, or optional forklift skids (code 430-115, 4 x M10) can be attached, with carry points under the front and rear.
- The Aquatec 12-volt DC electric pump has an electric pressure sensing switch and draws up to 11 amps.
- The pump uses chemical-resistant Viton valves and a Santo diaphragm, with an on/off switch and 3m of battery cable fitted with alligator clips.
- A 3-outlet delivery manifold connects to the hose reel with a pressure gauge, provides a spare 5D 1/2" BSP male-thread outlet with an on/off lever valve for an optional towbar boom, and includes a bypass outlet with a lever valve to adjust pressure to the spray gun or towbar boom and reduce pump pulsation.
- 3-stage filtration protects the pump and spray components.
- The JetPro spray gun adjusts from a straight stream to a conical spray pattern and has a lockable trigger.
- The 30-metre ECO hose reel has powder-coated metal construction with a lockable hub and locking pin, giving an effective spray distance of up to 10 metres.
- Optional forklift channels (pair, code 430-115) can be fitted north/south or east/west, with bolts and washers included for DIY fitment.
- Suited to weed control, fence lines, roadside maintenance and general property spraying for professional and rural users.
Specifications
- Brand: Silvan
- SKU: TP350-S10R-1
- Tank Capacity: 350L
- Pump Model: Aquatec DDP-555
- Pump: 12V DC electric, 14L/min open flow, 4 Bar / 60 psi max pressure
- Hose Reel Model: 180G03010B
- Hose Reel: Supplied with 30m x 10mm ID ag hose
- Spray Gun Model: 410-53, supplied with D8 nozzle
- Compatible Optional Towbar Booms: RP1-33, RP1-35, RP1-36
- Dimensions (H/W/L): 920 / 835 / 1009mm
- Product Weight: 41kg
- Warranty: 12 months
- MPN
- TP350-S10R-1
- Manufacturer
- Silvan
