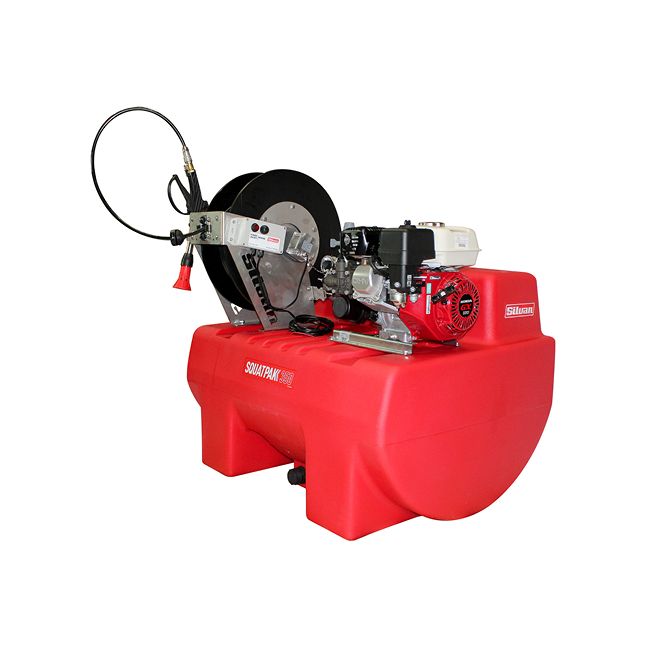

Silvan Squatpak 350L 12V 50M Hosereel Sprayer TP350-34-3
Purpose-built for side-by-sides, utility vehicles, buggies and other compact work vehicles, delivering powerful spraying performance in a compact, practical package. The 350L PolyTuff step tank has an integrated sump and twin internal baffles that minimise liquid surge during transport, improving stability and keeping spraying performance consistent. The sump design allows the tank to be fully drained and makes cleaning easier. Calibrated fill markings let operators accurately gauge the volume of liquid loaded. Bottom inserts allow the tank to be permanently fixed to a tray or fitted with optional forklift skids, and carry points are built into the front and rear for easier handling. The Honda GX160 engine is paired with a high-performance Comet MC20/20 pump, providing the flow and pressure needed to spray up to 15 metres and to run an 8-nozzle boom fitted with size 04 nozzles at 3 bar pressure. The engine includes a low oil level alert to help protect it, and drives the pump through a direct-drive 6:1 reduction gearbox. The pump is a self-priming, positive-displacement, oil-backed diaphragm design with nitrile diaphragms and a corrosion-resistant, cast anodised aluminium body. A 50-metre MK2 Easyroll 12V hose reel with remote-controlled rewind lets the operator retrieve the hose effortlessly, reducing fatigue and increasing productivity in the field. Controls include a pressure regulator with adjustable pressure and automatic bypass, a pressure gauge, and 2 outlets, one for the hose reel and one for an optional boom. Two-stage filtration protects the pump and minimises nozzle blockages, with a basket strainer under the filling lid and an easy-access tank-mounted suction filter. The atomiser spray gun adjusts from a straight stream to a conical spray, plus a fine atomising mist setting. Suited to rural properties, landscaping, weed control and general agricultural spraying applications. Brand: Silvan. SKU: TP350-34-3. Tank Capacity: 350L. Engine: Honda GX160. Reduction Gearbox: 6:1 direct drive. Pump: Comet MC20/20, 18.5L/min open flow, 20 Bar / 290 psi max pressure. Spray Gun Model: 410-52. Hose Reel: 50m MK2 Easyroll, 12V remote-controlled rewind. Compatible Optional Towbar Booms: RP1-11, RP1-35, RP1-36 (standard fitment is yellow 02 nozzles; RP1-11 and RP1-35 can be upgraded to red 04 nozzles for higher flow, RP1-36 cannot). Dimensions (H/W/L): 1060 / 834 / 1009mm. Product Weight: 61kg. Warranty: 12 months. 1.5mm ceramic nozzle. 2.0mm ceramic nozzle.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Purpose-built for side-by-sides, utility vehicles, buggies and other compact work vehicles, delivering powerful spraying performance in a compact, practical package.
- The 350L PolyTuff step tank has an integrated sump and twin internal baffles that minimise liquid surge during transport, improving stability and keeping spraying performance consistent.
- The sump design allows the tank to be fully drained and makes cleaning easier.
- Calibrated fill markings let operators accurately gauge the volume of liquid loaded.
- Bottom inserts allow the tank to be permanently fixed to a tray or fitted with optional forklift skids, and carry points are built into the front and rear for easier handling.
- The Honda GX160 engine is paired with a high-performance Comet MC20/20 pump, providing the flow and pressure needed to spray up to 15 metres and to run an 8-nozzle boom fitted with size 04 nozzles at 3 bar pressure.
- The engine includes a low oil level alert to help protect it, and drives the pump through a direct-drive 6:1 reduction gearbox.
- The pump is a self-priming, positive-displacement, oil-backed diaphragm design with nitrile diaphragms and a corrosion-resistant, cast anodised aluminium body.
- A 50-metre MK2 Easyroll 12V hose reel with remote-controlled rewind lets the operator retrieve the hose effortlessly, reducing fatigue and increasing productivity in the field.
- Controls include a pressure regulator with adjustable pressure and automatic bypass, a pressure gauge, and 2 outlets, one for the hose reel and one for an optional boom.
- Two-stage filtration protects the pump and minimises nozzle blockages, with a basket strainer under the filling lid and an easy-access tank-mounted suction filter.
- The atomiser spray gun adjusts from a straight stream to a conical spray, plus a fine atomising mist setting.
- Suited to rural properties, landscaping, weed control and general agricultural spraying applications.
Specifications
- Brand: Silvan
- SKU: TP350-34-3
- Tank Capacity: 350L
- Engine: Honda GX160
- Reduction Gearbox: 6:1 direct drive
- Pump: Comet MC20/20, 18.5L/min open flow, 20 Bar / 290 psi max pressure
- Spray Gun Model: 410-52
- Hose Reel: 50m MK2 Easyroll, 12V remote-controlled rewind
- Compatible Optional Towbar Booms: RP1-11, RP1-35, RP1-36 (standard fitment is yellow 02 nozzles; RP1-11 and RP1-35 can be upgraded to red 04 nozzles for higher flow, RP1-36 cannot)
- Dimensions (H/W/L): 1060 / 834 / 1009mm
- Product Weight: 61kg
- Warranty: 12 months
Includes
- 1.5mm ceramic nozzle
- 2.0mm ceramic nozzle
- MPN
- TP350-34-3
- Manufacturer
- Silvan
