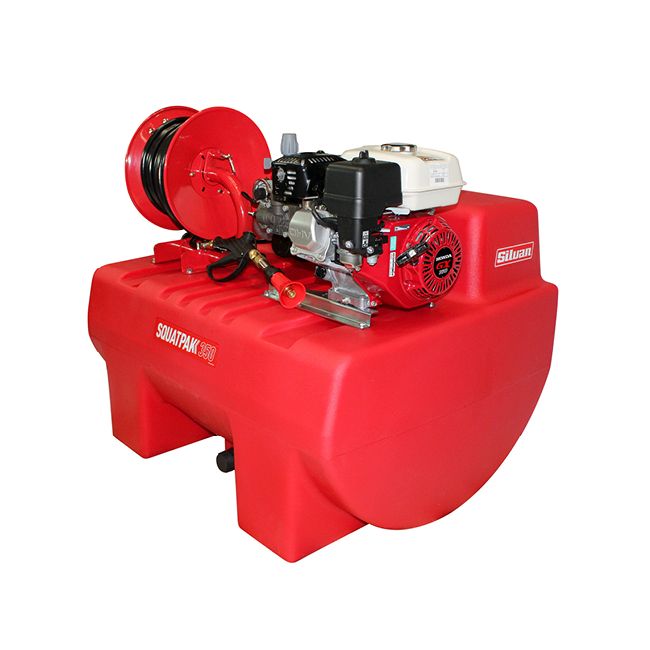

Silvan Squatpak 350L 30M Hosereel Sprayer TP350-34-1
Compact, high-performance 350L spraying solution designed for side-by-sides, UTVs, buggies, trailers and utility vehicles. Combines a durable Polytuff step tank with a Honda GX160 engine and Comet MC20/20 pump to deliver the flow and pressure needed for spot spraying, fence line, roadside and boom spraying. The tank has an integrated sump for easy draining and cleaning, calibrated fill markings, and twin internal baffles that reduce liquid surge during transport, improving stability on uneven terrain. Bottom inserts allow the tank to be permanently fixed to a tray or fitted with optional forklift skids. The engine includes a low oil level alert and drives the pump through a direct-drive 6:1 reduction gearbox. The pump is a self-priming, positive-displacement, oil-backed diaphragm design with nitrile diaphragms and a corrosion-resistant, cast anodised aluminium body. Controls include a pressure regulator with adjustable pressure and automatic bypass, a pressure gauge, and 2 outlets, one for the hose reel and one for an optional boom. Two-stage filtration protects the pump and minimises nozzle blockages, with a basket strainer under the filling lid and an easy-access tank-mounted suction filter. Fitted with a 30m Eco hose reel of powder-coated metal construction with a lockable hub and locking pin, and an atomiser spray gun adjustable from a straight stream to a conical spray plus a fine mist setting, giving an effective spray distance of up to 15 metres. Capable of operating an 8-nozzle boom fitted with size 04 nozzles at 3 bar for broad-area spraying. Optional forklift channels (pair, code 430-115) can be fitted north/south or east/west, with bolts and washers included for DIY fitment. Suited to professional and rural spraying applications. Brand: Silvan. SKU: TP350-34-1. Tank Capacity: 350L. Engine: Honda GX160. Reduction Gearbox: 6:1 direct drive. Pump: Comet MC20/20, 18.5L/min open flow, 20 Bar / 290 psi max pressure. Hose Reel Model: 180G03010B, supplied with 30m x 10mm ID ag hose. Spray Gun Model: 410-52. Compatible Optional Towbar Booms: RP1-33, RP1-35, RP1-36 (standard fitment is yellow 02 nozzles; RP1-33 and RP1-35 can be upgraded to red 04 nozzles for higher flow, RP1-36 cannot). Dimensions (H/W/L): 935 / 835 / 1010mm. Product Weight: 49kg. Warranty: 12 months. 1.5mm ceramic nozzle. 2.0mm ceramic nozzle.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Compact, high-performance 350L spraying solution designed for side-by-sides, UTVs, buggies, trailers and utility vehicles.
- Combines a durable Polytuff step tank with a Honda GX160 engine and Comet MC20/20 pump to deliver the flow and pressure needed for spot spraying, fence line, roadside and boom spraying.
- The tank has an integrated sump for easy draining and cleaning, calibrated fill markings, and twin internal baffles that reduce liquid surge during transport, improving stability on uneven terrain.
- Bottom inserts allow the tank to be permanently fixed to a tray or fitted with optional forklift skids.
- The engine includes a low oil level alert and drives the pump through a direct-drive 6:1 reduction gearbox.
- The pump is a self-priming, positive-displacement, oil-backed diaphragm design with nitrile diaphragms and a corrosion-resistant, cast anodised aluminium body.
- Controls include a pressure regulator with adjustable pressure and automatic bypass, a pressure gauge, and 2 outlets, one for the hose reel and one for an optional boom.
- Two-stage filtration protects the pump and minimises nozzle blockages, with a basket strainer under the filling lid and an easy-access tank-mounted suction filter.
- Fitted with a 30m Eco hose reel of powder-coated metal construction with a lockable hub and locking pin, and an atomiser spray gun adjustable from a straight stream to a conical spray plus a fine mist setting, giving an effective spray distance of up to 15 metres.
- Capable of operating an 8-nozzle boom fitted with size 04 nozzles at 3 bar for broad-area spraying.
- Optional forklift channels (pair, code 430-115) can be fitted north/south or east/west, with bolts and washers included for DIY fitment.
- Suited to professional and rural spraying applications.
Specifications
- Brand: Silvan
- SKU: TP350-34-1
- Tank Capacity: 350L
- Engine: Honda GX160
- Reduction Gearbox: 6:1 direct drive
- Pump: Comet MC20/20, 18.5L/min open flow, 20 Bar / 290 psi max pressure
- Hose Reel Model: 180G03010B, supplied with 30m x 10mm ID ag hose
- Spray Gun Model: 410-52
- Compatible Optional Towbar Booms: RP1-33, RP1-35, RP1-36 (standard fitment is yellow 02 nozzles; RP1-33 and RP1-35 can be upgraded to red 04 nozzles for higher flow, RP1-36 cannot)
- Dimensions (H/W/L): 935 / 835 / 1010mm
- Product Weight: 49kg
- Warranty: 12 months
Includes
- 1.5mm ceramic nozzle
- 2.0mm ceramic nozzle
- MPN
- TP350-34-1
- Manufacturer
- Silvan
