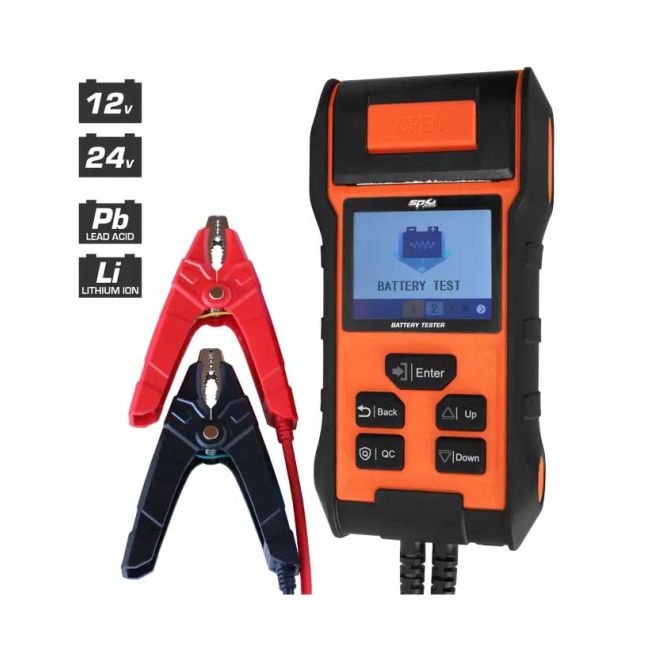

Features

• Uses advanced conductance testing technology to deliver fast, accurate measurements of battery health and system performance
• Tests 12V batteries as well as 12/24V charging and starting systems
• Built-in printing functionality provides instant hard copy test results
• Saved test results can be stored in convenient QR code format for easy tracking and record keeping
• High-voltage protection automatically powers down when exceeding 35V and can withstand up to 60V
• 2.8" backlit TFT LCD display provides clear, easy-to-read results
• Multi-function design covers battery, cranking and charge testing
• Reverse polarity protection helps prevent damage to the tester and vehicle

Specifications

• Measurement Range: Cold Cranking Amps (CCA) 30-3000Ah
• Testing Range: 30-3000 CCA
• Working Voltage: 7-30V DC
• Display: 2.8" TFT LCD
• Battery Type: Flooded/AGM/GEL/EFB/Lithium
• Working Temperature: -18 to 50°C (0 to 120°F)
• Protection: Reverse Polarity Protection
• Battery Standard: CCA/CA/BCI/MCA/DIN/IEC/EN/SAE/JIS/Ah
