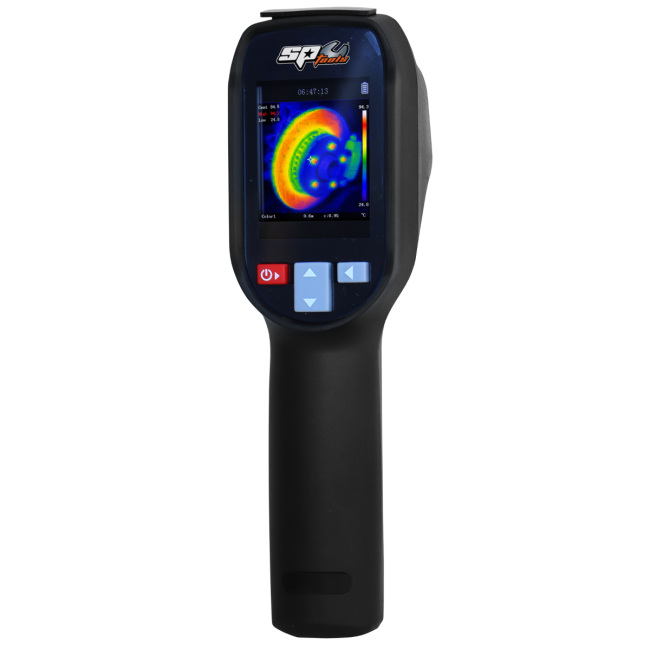

Features

• A professional automotive thermal diagnostic camera that lets mechanics and technicians quickly identify temperature variations and potential faults without unnecessary disassembly.
• It suits diagnosing engine hot spots, brake issues, electrical faults and HVAC problems, so you can investigate without immediately pulling components apart.
• The 240 x 240 thermal resolution gives detailed thermal images for spotting temperature differences and potential problem areas.
• The wide -20°C to 550°C (-4°F to 1022°F) temperature range suits a broad range of automotive diagnostic applications.
• Real-time temperature monitoring lets you track temperature changes while components and systems are operating.
• Centre-point temperature measurement gives a quick reading from the area being inspected.
• Automatic high and low temperature tracking helps identify unusually hot or cold areas within the thermal image.
• Adjustable emissivity from 0.01 to 1.00 lets the camera be set for different materials and surfaces.
• The adjustable 0.3m to 3m measuring focal length gives flexibility when inspecting different vehicle components and areas.
• A screen font colour temperature alarm gives a clear visual indication when alarm temperature conditions are detected.
• Images and reports can be saved, so you can keep diagnostic images for job records or use them to explain findings to customers.
• Built-in memory stores up to 30,000 images, which is substantial capacity for workshop use.
• The bright, clear high-visibility display is easy to view in varying workshop lighting conditions.
• The rechargeable lithium battery allows cordless operation for workshop and mobile diagnostics, with up to 7 hours of battery life for demanding workshop days.
• The laser pointer assists with targeting the area being inspected.
• Temperature units can be switched between Celsius, Fahrenheit and Kelvin.
• Engine hot spots: compare temperatures across engine components to identify abnormal heat patterns.
• Brake diagnostics: compare brake temperatures to help identify overheating or abnormal temperature differences.
• Electrical faults: locate abnormal heat around electrical components, connections and wiring.
• HVAC issues: visualise temperature differences throughout heating and air-conditioning systems.

Specifications

• Brand: SP Tools
• Model: SP70940
• Display: 2.4" LCD
• Sensor Type: Vanadium Oxide (VOx) Microcalorimeter
• Thermal Image Resolution: 240 x 240 pixels
• Temperature Measuring Focal Length: 0.3m to 3m adjustable
• Temperature Range: -20°C to 550°C / -4°F to 1022°F
• Temperature Resolution: 0.1°C
• Temperature Units: Celsius / Fahrenheit / Kelvin
• Emissivity: 0.01 to 1.00 adjustable
• Temperature Measurement: Centre-point measurement
• Temperature Tracking: High & low temperature tracking
• Laser Pointer: Yes
• Temperature Alarm: Screen font colour alarm
• Image Storage: Up to 30,000 images
• Focus Mode: Auto focusing
• Battery: Rechargeable lithium battery
• Battery Life: Up to 7 hours
• Warranty: 12 Months (covers manufacturing defects and faulty materials; excludes overloading, abuse, misuse, normal wear and tear and use for other than the intended purpose)
• UPC: 9330514101421
