Features

• Fully automatic, motor-driven rotation laser delivers high-precision results with ±0.1 mm/m accuracy
• Fast self-leveling within 20 seconds ensures quick setup and immediate productivity
• Four versatile functions: horizontal rotation, vertical rotation, plumb-line, and 90° right-angle layout
• IP65 rated for superior resistance to dust and water—ideal for tough outdoor environments
• Shock-absorbing soft grip casing and robust housing protect the optics and maintain durability
• Simple three-button operation for on/off, tilt mode, and manual mode
• Easy battery replacement via a convenient drawer design—even when mounted on a tripod
• Working diameter up to 600 m with the REC 160 RG receiver
• Includes two integrated 5/8" tripod threads for flexible horizontal and vertical mounting

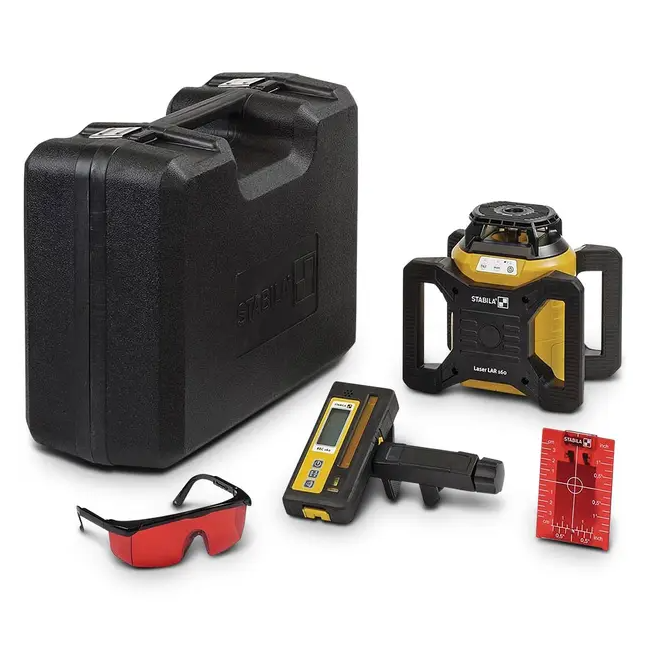

• Comes with a magnetic target plate with cross-hair, laser-enhancing goggles, and a stable carrying case

Applications

• Bricklaying – establishing levelling layers
• Reinforced concrete – foundation pouring and batter board construction
• Metal construction – aligning steel beams in industrial builds
• Landscaping – designing paths, paving, and garden layouts
• Carpentry – mounting exterior cladding and façades
• Civil engineering – pipeline installation and layout work

Specifications

• Laser Class: 2
• Laser Output: < 1 mW
• Laser Wavelength: 635 nm
• Self-levelling Range: ±5°
• Levelling Accuracy: ±0.10 mm/m
• Working Diameter (with receiver): 600 m
• Battery Type: D cell
• Operating Time: 40 hours
• Protection Class: IP 65
• Tripod Connection: 5/8"
