Features

• Lock function: locking mechanism for transferring angles reliably.
• Vials which can be read easily, even when the arm is folded in.
• Two particularly wide contact edges for accurate and reliable marking of angles IN all positions.
• Ref function: allows a reference angle to be accepted, saved and then transferred to other components.
• Hold function: saves the measured value for accurate measurements and quick transferring even IN hard-to-see places.
• Displays the angle bisectors at the touch of a button ideal for quick and accurate mitre cuts.
• Switches off automatically if not used for 60 minutes.
• Protection class IP 54.
• Equipment: 1 digital display, 1 horizontal vial, 1 vertical vial, 2 coated measuring surfaces.
• Protection class: IP 54

Specifications

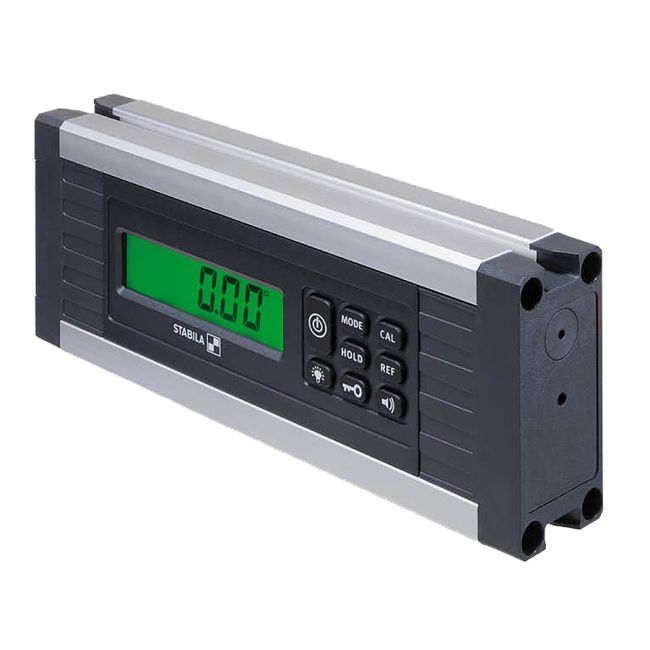

• Electronic angle finder for quickly determining and transferring interior and exterior angles IN the range from 0 270.
• Digital display with large digits and lighting that can be activated and dimmed.
• Precise measuring results with an accuracy of 0.1.
• Accuracy with electronic angle measurement: +/-0.10
• Measurement accuracy IN normal position: 0.50 mm/m
• Measurement accuracy IN reverse position: 0.75 mm/m
• Max. measuring range: 270
• Operating life: 120 H

Includes

• Includes bag.
