Features

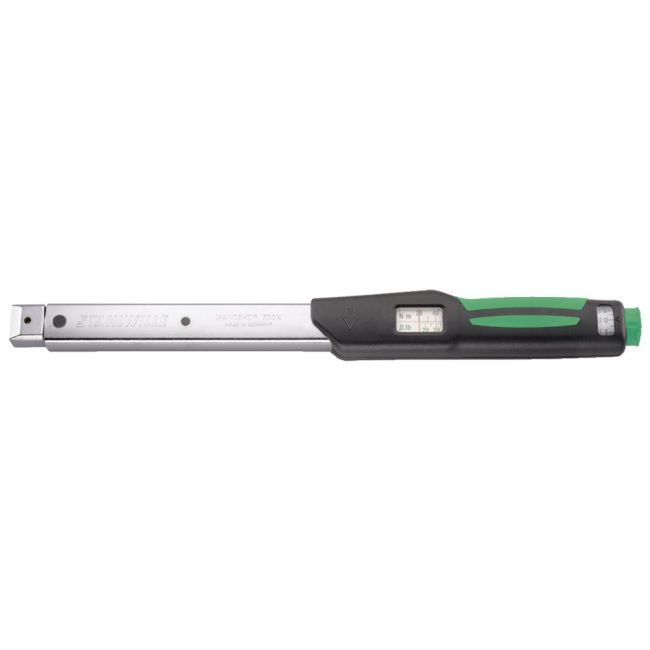

• The MANOSKOP 730N is a mechanical clicking torque wrench with a mount for interchangeable socket tools, supplied as a basic wrench with tool carrier for insert tools.
• Torque can be set accurately with one hand using the knob at the end of the handle, giving quick and easy control.
• Audible setting positions let the user hear each torque setting as it is adjusted.
• A fail-safe setting mechanism in the knob helps prevent accidental changes to the preset torque.
• The clearly readable twin scale is colour coded in N m and ft.lb, with ft.lb and inch.lb markings, for very clear reading.
• Noticeable double signals are given when the preset torque is reached, and the QuickSelect quick-action adjuster allows rapid, accurate setting.
• Square drives with QuickRelease safety locks are available for 9x12, 14x18 and 22x28 mm.
• The 2-component handle has ergonomically designed green softer layers and is resistant to oils, grease, fuels, brake fluids and Skydrol.
• The measuring element is only under load while force is being applied, so there is no need for manual reset to zero, and all sensitive components are protected by the sturdy housing.
• If the wrench is misused, for example to force seized-up screws, the measuring mechanism is deactivated.
• The swap-over inserts can also be used to apply torque in an anticlockwise direction.
• The wrench is easily adjustable without disassembly, for example using testers No-798, No-799 or No-7707 W, and offers long-term repeated accuracy.
• Guaranteed maximum accuracy deviation is +/- 3% and the wrench is supplied with a certificate.

Specifications

• Brand: Stahlwille
• Model: SW730N/40P
• Type: Mechanical
• Size: #40
• Mount: 14x18mm
• Size Range: 80-400Nm
• Deviation of Indication: ±3%
