Features

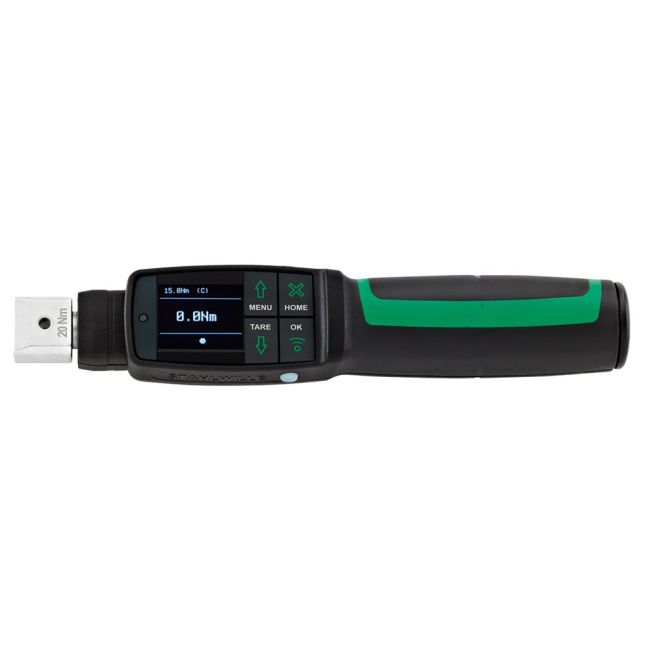

• MANOSKOP(R) 714 "" indicating and cut-out
• Electromechanical torque and angle-controlled wrench
• 4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
• high-definition colour display with additional side-mounted indicator lamps
• freely configurable menu structure
• 3 function modes: cut-out, peak (indicating mode with peak value) and track (indicating mode with current value)
• Micro USB 2.0 interface
• bayonet connection for battery compartment
• QuickRelease safety lock change system for insert tools
• angle-controlled measurement without a reference arm
• data storage (< 2500 tightening jobs)
• as many as 200 joints can be programmed in up to 25 preset sequences.
• different tolerance limits can be set for each joint
• acoustic and visual assessment of the joint
• rapid, accurate setting via keypad
• the automatic keypad lock prevents inadvertent changes
• overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
• automatic notification of the next calibration date, either by the number of joints or the time interval
• fully automated calibrating and adjusting using the perfectControl calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
• tightening torque is automatically corrected if a deviating extension is entered
• immediately reusable after release
• clockwise and anticlockwise tightening "" it may be necessary to refit the insert tool rotated through 180 degrees for anticlockwise tightening in the cut-out mode
• tactile, visual and acoustic trigger signal.
• torque and angle are simultaneously visible
• all readings are independent of the point of application of force (with sizes 1, 2 and 4)
• safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)
• 2 certificates (torque, angle)
• in sturdy plastic case (size 40 in steel case)
• design patent, other patents applied for
• supplied with Sensomaster software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
• display resolution, angle 0.1 degrees
• display deviation value, angle +/-1%, +/-1 digit
• display deviation value, angle +/-2%, +/-1 digit

Specifications

• Type: Digital
• Mount: 9x12
• Size Range: 1-10Nm
• Pack Weight (KG): 0.80
• Optionally: Li-ion battery No 7195-2 and charger No 7160
• units of measure: N m, ft.lb, in.lb.
• display resolution, torque (< 40 N m: 0.01 N m; > 40 N m: 0.1 N m
