Features

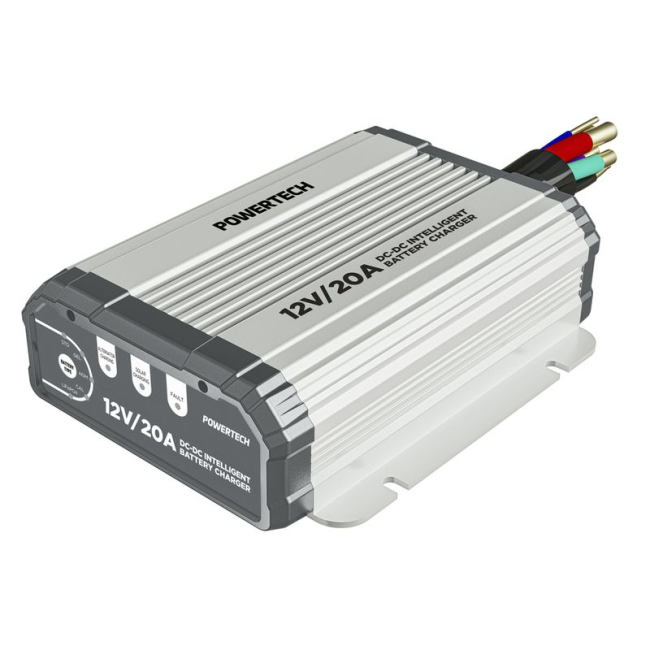

• Highly efficient 12V 20A DC-DC battery charger for automotive and solar applications
• Suits touring vehicles, caravans, camping setups and off-grid power systems
• Dual charging from solar panels during the day or the vehicle alternator while driving
• Intelligent charging system automatically adjusts performance to maximise battery life and efficiency
• Compatible with 12V Lead Acid, AGM, Gel, Calcium and LiFePO4 batteries
• Adapts easily to most dual-battery systems
• Selectable battery settings ensure precise charging voltages for long-term battery health
• One-button battery selection: press and hold the Battery Type button for 3 seconds to cycle through battery types
• Ignition-sense wire included for vehicles with smart alternators
• Up to 97% maximum charging efficiency
• Automatic solar priority switching delivers maximum usable power with minimal energy loss
• Rugged IP65-rated enclosure protects against dust and light water spray
• Compact, easy-to-mount design
• 50A Anderson-compatible high-current connectors for secure, straightforward installation
• Short circuit protection
• Over-temperature protection
• Reverse polarity protection
• Supplied with manual

Specifications

• Input Voltage (Alternator): 12-18VDC
• Input Voltage (Solar): 12-28VDC
• Max. Current: 20A / 250W
• Max. Charging Efficiency: 97%
• Battery Types Charged: 12V Lead Acid, AGM, Gel, Calcium, LiFePO4
• Ingress Protection: IP65
• Connector Rating: 50A
• Lead Length: 30cm
• Lead Connectors: Grey High-Current Connectors
