Electus

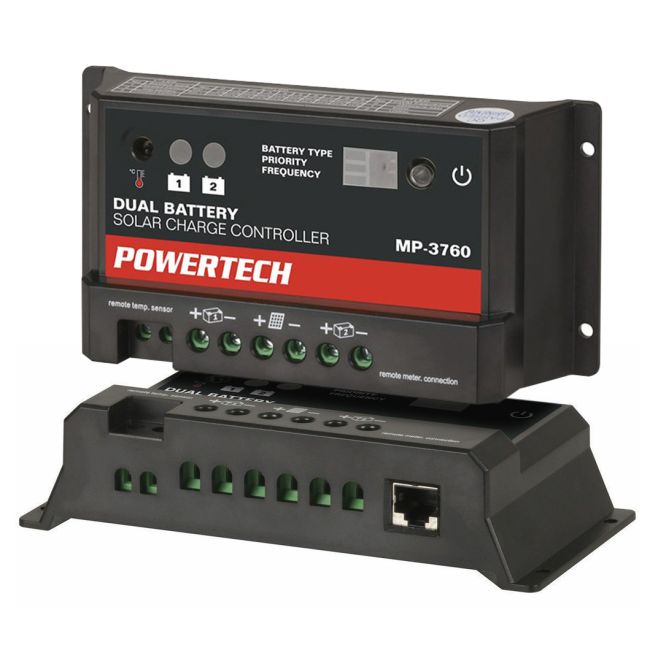

PowerTech PWM Solar Charge Controller LED Gauge 12/24V 10A Dual Battery MP3760

SKU MP3760
$69.95
inc. GST

or 4 interest-free payments of $17.49 with Afterpay or Zip

We have many solar battery charger controllers - up to 50A - but they only work on one battery bank. This unit will charge TWO house battery banks or one house bank and your motor start battery as well. Too often the motor start battery is forgotten if you are camped in the one spot for a long time. Will charge 2 completely separate battery banks at the same time. Highly efficient PWM (Pulse-width modulation) charging system. Electronic protection from over charging short circuit or accidental reverse battery connection. Max solar input voltage: 30V (12V system), 55V (24V system). Battery input voltage range: 8-15V (12V system), 8-30V (24V system). Overnight self-consumption: 4mA. Recommended solar panel to utilise output of this controller. ZM9059, 8.3A unit. (Note output of this controller is limited by the current output of the solar panel feeding it). Width : 153.0mm. Height : 76.0mm. Depth : 37.0mm. Weight : 240.0g. Required Voltage : 12.0V. Current Draw : 10.0A. Charge Controller Technology : Pulse Width Modulated (PWM).

Read full description

In stock

Apple Pay, Google Pay, Link and PayPal, no account needed

Delivery to your door

Secure checkoutCard, PayPal, Afterpay, Zip

Price match

Seen it cheaper somewhere else? Send us the link and we'll get back to you by email.

Seen it cheaper somewhere else? Send us the link and we'll get back to you by email.

PowerTech PWM Solar Charge Controller LED Gauge 12/24V 10A Dual Battery MP3760 SKU MP3760 Our price $69.95
The page where you saw the lower price.

We only use your details to reply to this request.

Request sent

Thanks. We've got your price match request for PowerTech PWM Solar Charge Controller LED Gauge 12/24V 10A Dual Battery MP3760 and will reply to the email address you gave us.

Features

  • We have many solar battery charger controllers - up to 50A - but they only work on one battery bank. This unit will charge TWO house battery banks or one house bank and your motor start battery as well. Too often the motor start battery is forgotten if you are camped in the one spot for a long time.
  • Will charge 2 completely separate battery banks at the same time
  • Highly efficient PWM (Pulse-width modulation) charging system
  • Electronic protection from over charging short circuit or accidental reverse battery connection
  • Max solar input voltage: 30V (12V system), 55V (24V system)
  • Battery input voltage range: 8-15V (12V system), 8-30V (24V system)
  • Overnight self-consumption: 4mA
  • Recommended solar panel to utilise output of this controller. ZM9059, 8.3A unit. (Note output of this controller is limited by the current output of the solar panel feeding it).


Specifications

  • Width : 153.0mm
  • Height : 76.0mm
  • Depth : 37.0mm
  • Weight : 240.0g
  • Required Voltage : 12.0V
  • Current Draw : 10.0A
  • Charge Controller Technology : Pulse Width Modulated (PWM)

Type
Solar Charge Controller
MPN
MP3760
upc
9341229003757
Manufacturer
Electus
