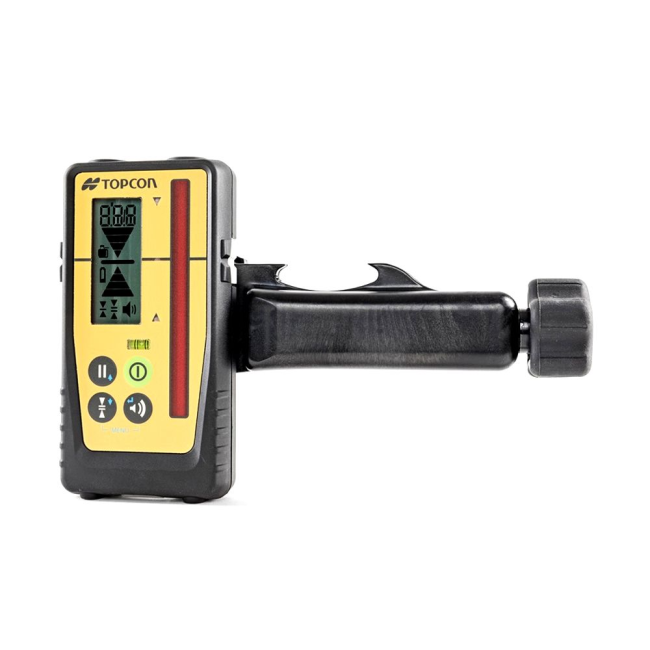

Topcon LS-100D Compact Digital Laser Sensor 1091205-01
or 4 interest-free payments of $151.80 with Afterpay or Zip
Digital readout delivers confident elevation and vertical alignment control on demand. Extra-wide beam capture sensor rejects interference from strobe light exposure. Large, bright LCD displays (front and rear) show 9 channels of grade information. Digitally displays distance to on-grade. Hold button locks the display for easy reading of results. 4 accuracy resolutions from ±0.5mm to ±10mm. 90mm reception height for extra-wide beam capture sensor. Built-in magnets and three coloured LEDs support vertical operation, ideal for steel erection or gradechecking while excavating. Alert icons on the LCD flag if the instrument is disturbed (HI alert) or when the laser battery is low, helping monitor the Topcon rotating laser. Perfect partner for the RL-H4C, RL-SV2S or RL-200 series (sold separately). Model Number: 1091205-01. Working Range (Diameter): 800m. Vertical Detecting Range: 90mm (-30mm to +60mm). LCD Digital Readout Range: 70mm (-20mm to +50mm). Horizontal Detecting Range: ±45°. Strobe Light Suppression: Yes. Unit: mm, cm, inch, fractional inch. On-Grade Resolution: ±0.5mm, ±1.0mm, ±2.0mm, ±5.0mm, ±10.0mm. LCD Grade Indicators: 9 Channels. LED Grade Indicators: Orange, Green, Red (On/Off selectable). Display: LCD On Each Side. Buzzer: Loud/Low/Off Selectable. Bubble Tube: Yes. Warning Icons: HI Alert, Low Battery. Battery: 1 x AA/LR6 Dry-cell Battery. Operating Time: Up To 45 Hours With Alkaline Batteries. Battery Level Indicator: LCD Icon. Auto Shut-off: Approx. 30 Minutes. Dust/Water Rating: IP67 (IEC 60529). Operating Temperature: -20°C to 50°C. Dimensions (L x W x H): 134mm x 69mm x 25mm. Weight: 0.19kg.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Digital readout delivers confident elevation and vertical alignment control on demand
- Extra-wide beam capture sensor rejects interference from strobe light exposure
- Large, bright LCD displays (front and rear) show 9 channels of grade information
- Digitally displays distance to on-grade
- Hold button locks the display for easy reading of results
- 4 accuracy resolutions from ±0.5mm to ±10mm
- 90mm reception height for extra-wide beam capture sensor
- Built-in magnets and three coloured LEDs support vertical operation, ideal for steel erection or gradechecking while excavating
- Alert icons on the LCD flag if the instrument is disturbed (HI alert) or when the laser battery is low, helping monitor the Topcon rotating laser
- Perfect partner for the RL-H4C, RL-SV2S or RL-200 series (sold separately)
Specifications
- Model Number: 1091205-01
- Working Range (Diameter): 800m
- Vertical Detecting Range: 90mm (-30mm to +60mm)
- LCD Digital Readout Range: 70mm (-20mm to +50mm)
- Horizontal Detecting Range: ±45°
- Strobe Light Suppression: Yes
- Unit: mm, cm, inch, fractional inch
- On-Grade Resolution: ±0.5mm, ±1.0mm, ±2.0mm, ±5.0mm, ±10.0mm
- LCD Grade Indicators: 9 Channels
- LED Grade Indicators: Orange, Green, Red (On/Off selectable)
- Display: LCD On Each Side
- Buzzer: Loud/Low/Off Selectable
- Bubble Tube: Yes
- Warning Icons: HI Alert, Low Battery
- Battery: 1 x AA/LR6 Dry-cell Battery
- Operating Time: Up To 45 Hours With Alkaline Batteries
- Battery Level Indicator: LCD Icon
- Auto Shut-off: Approx. 30 Minutes
- Dust/Water Rating: IP67 (IEC 60529)
- Operating Temperature: -20°C to 50°C
- Dimensions (L x W x H): 134mm x 69mm x 25mm
- Weight: 0.19kg
- MPN
- 1091205-01
- Manufacturer
- Topcon
