Features

• Fitted with two laser diodes, one projecting upward and one downward, for high-precision plumb alignment in both directions.
• Includes an optical scope with 24x magnification for precise sighting of the plumb point.
• Built with a sturdy, durable housing designed to withstand regular jobsite use.
• Compatible with both flat-head and dome-head tripods for flexible mounting.
• The laser beam can be adjusted to produce a sharp, clear dot across a variety of site conditions.

Specifications

• Brand: TUF

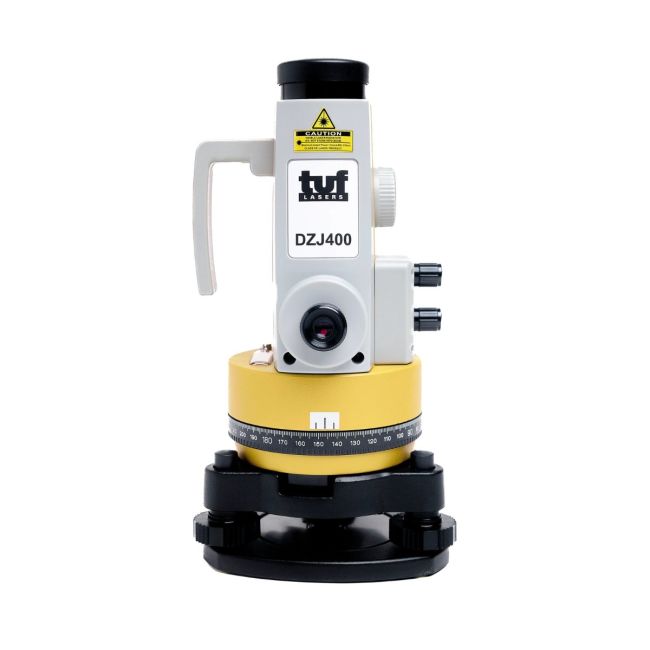

• Model: TUF-DZJ400
• Telescope Optical Magnification: 25x
• Field of View: 1 degree 20 minutes
• Accuracy (Vertical Upward Laser): +/-2.5mm/100m
• Accuracy (Vertical Downward Laser): +/-1mm/1.5m
• Objective Diameter: 36mm
• Plate Level Sensitivity: 30 arcsec / 2mm
• Laser Diode / Class: Red / Class 2
• Spot Size: 3mm / 50m
• Max. Visible Distance (Day): >=120m
• Max. Visible Distance (Night): >=250m
• Deviation to Optical Axis: >=5 arcsec
• Accuracy: +/-2.5mm/100m
• Power Supply: 10 hours / Li-Ion
• Operating Temperature: -10 to +50 deg C
• Dust / Water Protection: IP54
• Weight: 2.8kg
