Features

• Charges via USB-C, providing a convenient and widely compatible way to power up the unit's battery pack.
• Includes a fine motion adjustment control for precise fine-tuning of the laser line position once the unit is set up.

Specifications

• Brand: TUF
• Model: TUF-LCG4
• Accuracy: +/-2mm/10m (equivalent to +/-0.2mm/1m)
• Range with Receiver: Up to 70m
• Laser Lines: Horizontal 2 x 360 degrees, Vertical 2 x 360 degrees
• Levelling Range: +/-3.5 degrees
• Levelling: Pendulum levelling
• Slope Function: Manual (via pendulum lock)
• Tripod Thread: 1/4 inch and 5/8 inch
• Laser Wavelength: 515nm
• Laser Classification: Class 2, less than 1mW
• Power: 12V battery pack
• Protection: IP54
• Dimensions: 62 x 117 x 153 mm
• Weight: 0.5kg
• Operating Temperature: -10 to +40 deg C
• Storage Temperature: -20 to +70 deg C
• Warranty: 2 Years

Includes

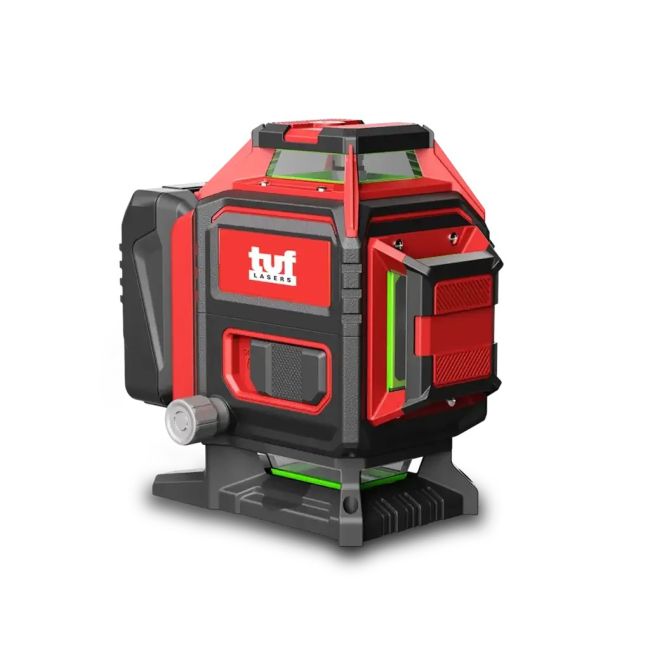

• 4x360 green beam line laser
• 2 x battery pack
• Magnetic bracket
• Target plate
• Carry case
