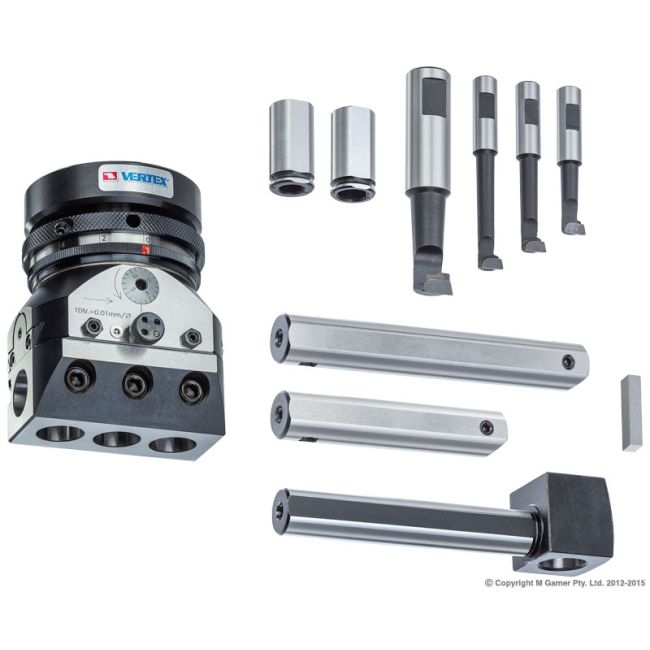

Vertex Universal Boring and Facing Head VBHU

Features

• Precision construction allows freedom of adjustment. Auto-feed and stop facility
• Rigid construction, combined with strength, flexibility and accuracy, create this unique tool
• Two vertical boring tool holes - one for centred and one for offset work
• 2 speed, manual fine feed & rapid
• Cutting range 5 to 250mm bore
• One cross hole for greater versatility
• Balanced for high speed operation

Specifications

• Chuck Diameter: 100mm
• Drive Size: 8mm Square

Includes

• 1 x 60mm long x 10mm shank boring bar
• 1 x 70mm long x 10mm shank boring bar
• 1 x 80mm long x 10mm shank boring bar
• 1 x 90mm long x 18mm shank boring bar
• 1 x 90mm long boring bar holder extension - suits 1/4" HSS
• 1 x 120mm long boring bar holder extension - suits 1/4" HSS
• 1 x 180mm long boring bar holder extension
• 1 x 18-12mm reducer sleeve
• 1 x 18-10mm reducer sleeve
• 1 x 1/4" HSS
• 4 x Hex keys
