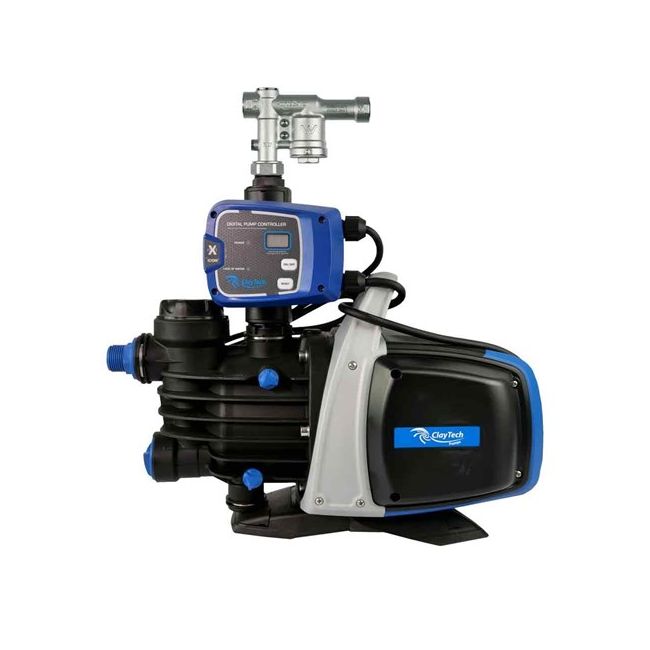

ClayTech C3X Pressure Pump + 3/4" AcquaSaver CLA-CMS-C3X-A2

Features

• Self-priming centrifugal jet pump with excellent suction capacity, ideal for water supply and pressure boosting in farmhouses.
• Compact, lightweight, and robust design with easy-to-use functionality.
• Integrated pre-filter for easy maintenance without the need for tools, extending the pump's lifespan.
• Non-return valve built into the pump for added protection and backflow prevention.
• Quiet operation with a water-cooled motor, eliminating the need for air circulation and allowing installation in confined or covered spaces.
• LED display for viewing pressure levels and operation modes at a glance.
• Loss of prime protection and auto controller to prevent damage during low water conditions.
• Swivel connection with quick release for easier setup and maintenance.
• Drainage feature to remove residual water, protecting the pump from frost and limescale buildup.

AcquaSaver® Water Diversion Valve Features

• Automatically switches between rainwater and mains water based on availability, ensuring efficient water use.
• Hydraulically operated with no electronic components for reliable, maintenance-free operation.
• Solid brass construction with built-in dual check valves for backflow prevention.
• Fully weatherproof design, suitable for both indoor and outdoor installations.
• Requires no electrical power, contributing to energy savings.
• Can be installed in any position, providing flexible mounting options.

Specifications

• Approval: Approved for drinking water
• Flow Rate: 50 L/min
• Kilowatts: 0.4 kW
• Max Head: 39m
• Max Suction Lift: 8m
• Taps Supported: 3 taps
• Warranty: 36 months
• Watts: 400W
• Pack Weight: 15kg
• Inlet Size: 1 inch
• Pump Outlet Size: 1 inch
• AcquaSaver Valve Size: 3/4 inch
• Construction Material: Solid brass (AcquaSaver), ABS + PC (Pump)

Includes

• 1 x C Series Integrated Water Pump
• 1 x AcquaSaver® Water Diversion Valve
• User manual for installation and operation

How the AcquaSaver® Works

• Prioritizes rainwater use when available and automatically switches to mains water if the rainwater tank runs low or during power outages.
• Automatically switches back to rainwater once the water tank is replenished or power is restored.
• The pump only operates when rainwater is being drawn, conserving energy when switched to mains water.
• Hydraulic pressure mechanism with minimal moving parts ensures reliable, efficient operation without electronic components or energy consumption.
