Features

• Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.
• 1.47kW, 2.0hp, 415V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4" BSPF Out
• 3 phase pumps require contactor and overload.
• 2 Year DAB Pumps Warranty
• Location: The pump should be located as close to the water source as possible and should be protected from the elements
• Piping: Only use pipe that is in good condition and free of rust or scale
• Types of Pipe: Plastic or galvanised steel can be used with jet pumps
• Water to Pump Piping: All offset piping should slope upwards from water source to pump.

Specifications

• Brand: DAB Pumps

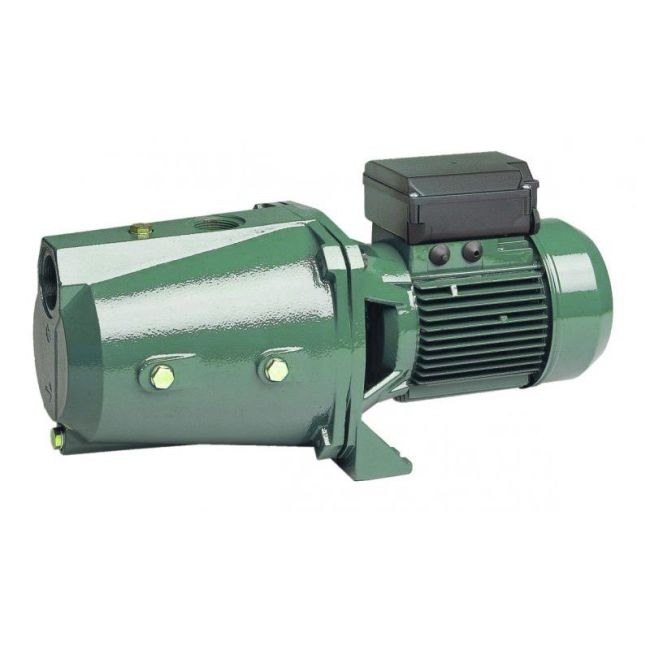

• Product Type: Single Stage Jet Pump
• Suitable For: Tank Transfer
• Bar: 4.1 Bar
• Flow Range Category: b. 100 - 199 L/min
• Flow Rate (L/min): 175 L/min
• Hp: 2 Hp
• KPa: 415 kPa
• Kilo Watts: 1.47 kW
• Casing Material: Cast Iron
• Head Range Category: b. 40 - 59 m
• Max Head (m): 41 m
• Port Size Inlet: 1 1/2" BSPF inlet
• Port Size Outlet: 1 1/4" BSPF outlet
• Powered: Electric
• Volts: 415 V
• Watts: 1470 W
