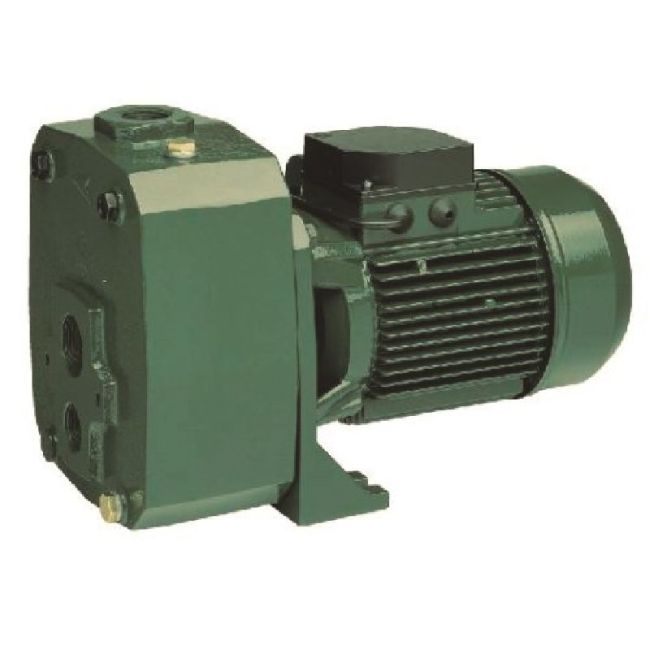

Features

• For use in supplying water to farmhouses and in small scale agriculture.
• 1.85kW, 2.5hp, 240V, max hd 70m, max flow 72L/m Ports 1 1/4" BSPF In, 1" BSPF Out
• Note: Deep well injector kits sold seperately
• 2 Year DAB Pumps Warranty
• Location: The pump should be located as close to the water source as possible and should be protected from the elements
• Piping: Only use pipe that is in good condition and free of rust or scale
• Types of Pipe: Plastic or galvanised steel can be used with jet pumps
• Water to Pump Piping: All offset piping should slope upwards from water source to pump.

Specifications

• Brand: DAB Pumps
• Product Type: Multistage Jet Pump
• Suitable For: Tank Transfer
• Bar: 7 Bar
• Flow Range Category: a. 0 - 99 L/min
• Flow Rate (L/min): 72 L/min
• Hp: 2.5 Hp
• KPa: 709 kPa
• Kilo Watts: 1.9 kW
• Casing Material: Cast Iron
• Head Range Category: c. 60 - 99 m
• Max Head (m): 70 m
• Port Size Inlet: 1 1/4" BSPF inlet
• Port Size Outlet: 1" BSPF outlet
• Powered: Electric
• Taps: 7 Taps
• Volts: 240 V
• Watts: 1850 W
