Features

• Complete solution for domestic pressure systems and garden irrigation with integrated controller
• Integrated controller automatically starts and stops the pump based on demand, removing the need for external pump controllers for simpler installation and operation
• Quiet operation
• 2.2 bar cut-in pressure
• Auto restart after power outage
• Dry-run protection with auto restart check
• Electrical safety approval to GMA-514285-EA
• Tested to Drinking Water Standard AS/NZS 4020

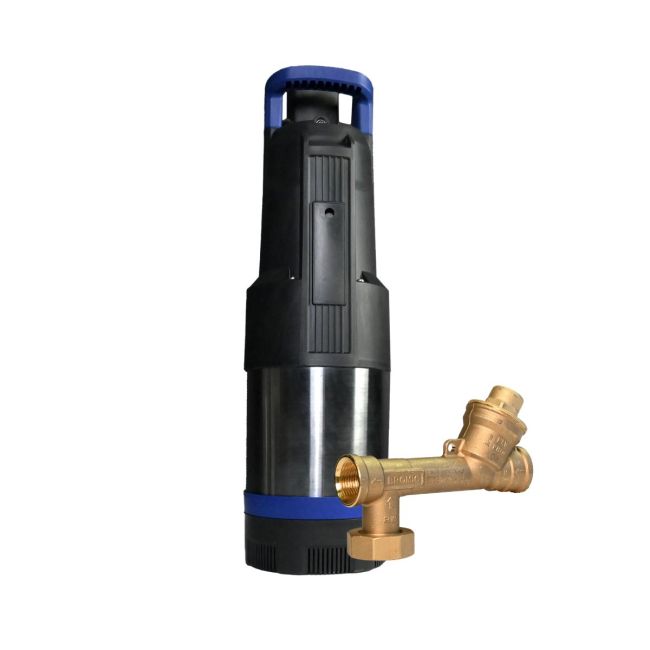

• Includes Hydro Switch™ automatic changeover valve, WaterMark Approved for use with potable water (WMTS 477:2016, LN: 021636), enabling automatic switching between rainwater storage tanks and mains water supply

Specifications

• Brand: Waterboy
• Rated power: 800W
• Rated voltage: 230V/50Hz
• Maximum supply height: 37 m
• Maximum particulate size: 1 mm
• Maximum flow rate: 100 L/min
• Maximum liquid temperature: 35°C
• Maximum submersion or immersion depth: 7 m
• Weight: 8.2 kg
• IP rating: IPX8
• Thread size: 1"
• Thread type: G
• Width: 150 mm
• Height: 540 mm
• Cut-in pressure: 2.2 bar
• Application: Domestic household pressure systems and garden irrigation
• Water type: Clean
• Power cable length: 10 m
• Fuel type: Water
• Warranty: 2 year replacement warranty
