Features

• Time-saving tool for locating and marking center points or angles on pipe
• Equipped with an adjustable dial bubble protractor for accurate measurements
• Helps set centerlines, establish angles, and mark for butt-ins and keyways
• Ideal for finding top or bottom dead center on pipes
• Assists in locating ordinate lines at various angles or positions
• Available in standard and jumbo models

Specifications

• Standard model: KC-J1879
• Suitable for use on pipe 12mm (1/2 in) and larger
• Features a 100mm (4 in) Y-type head with adjustable dial bubble protractor (No. DSL)
• Centering pin is manually operated—use with a hammer
• Constructed from aluminium with a hardened steel pin
• Dial-level combination repairable with KC-J1905 Dial Set Level (No. DSL)

Includes

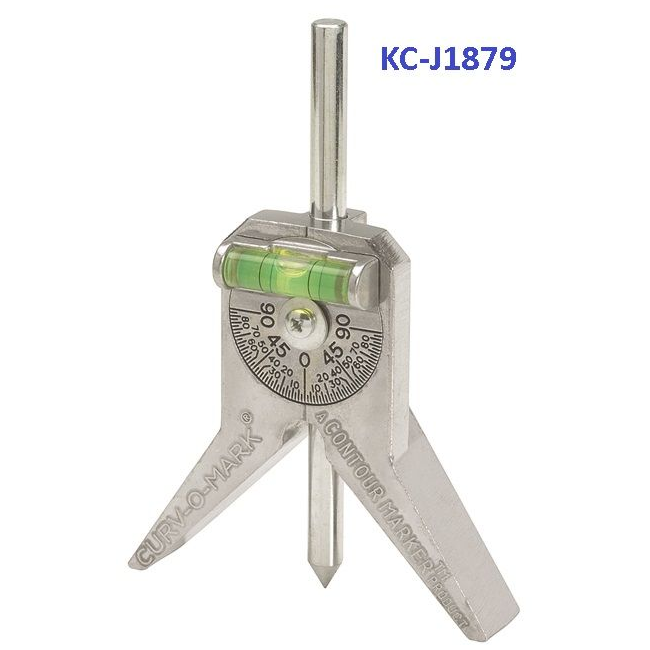

• Jackson Contour Centering Head – Standard KC-J1879
• Adjustable dial bubble protractor (No. DSL)
• Manual centering pin
