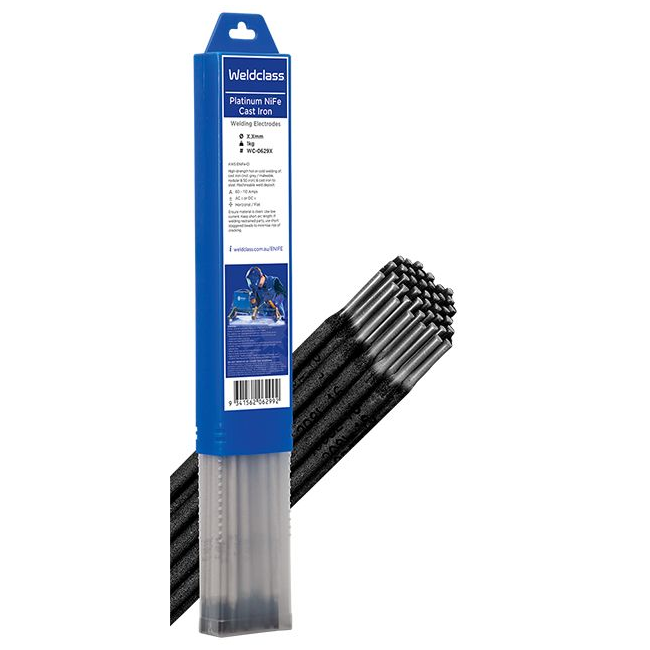

Weldclass 1kg Platinum NiFe 3.2mm Re-Usable Pack WC-06299
Availability:
In stock
SKU
WC-06299
$189.00
Delivery Availability
Delivery Cost & Shipping Time
Weldclass Welder MIG / Stick / TIG 10A Plug (Gasless) 180MST WF-06128
was
$899.00
Special Price
$860.00
Weldclass TIG Torch PLATINUM TK17 Super-Flex 4m (150 Amp) WC-04997
was
$219.00
Special Price
$179.00
Weldclass Parts Kit PLATINUM PX 17/18/26 Std Diameter 1.6/2.4/3.2mm WC-01662
was
$109.00
Special Price
$100.00
Features
- Ideal for hot or cold welding of cast iron to cast iron or cast iron to steel
- High-strength weld metal with excellent resistance to solidification cracking
- Fully machinable weld deposits for easy post-weld processing
- Extremely soft, stable arc with low spatter for cleaner welds
- Compatible with low OCV welding machines (minimum 45V)
- Available in blister handy-pack and 1kg reusable pack
Specifications
- Classification: AWS ENiFe-CL
- Suitable Materials: Grey, malleable, nodular, SG, and austenitic cast irons, some grades of Meehanite, and cast iron to steel
- Weld Metal: High strength and machinable
- Tensile Strength: 500 MPa
- Chemical Composition: C 1.26%, Mn 0.80%, Si 0.66%, P 0.005%, S 0.003%, Ni 57.25%, Fe Balance
- Electrode Size: 3.2mm
- Polarity: AC ± or DC ± (electrode positive or negative)
- Current Range (3.2mm): 60–100A
- Minimum Open Circuit Voltage: 45V
- Welding Tips: Use low current, short arc, and short staggered beads to reduce cracking risk
| MPN | WC-06299 |
|---|---|
| upc | 9341562062992 |
| Manufacturer | Weldclass |
