Features

• Precision tool designed to assist with setting centerlines, angles, and layout marks on pipes and tanks
• Essential for locating top or bottom dead center on cylindrical surfaces
• Ideal for marking keyways, butt-ins, ordinate lines, and angle locations
• Helps measure pipe declivity with consistent accuracy
• Y-type head provides stable, secure positioning during use
• Built-in adjustable dial bubble protractor ensures exact angle measurements
• Lightweight aluminium body combined with a hardened steel pin for durability
• Standard and jumbo versions offer manual or trigger-operated centering pin options to suit different jobsite needs

Specifications

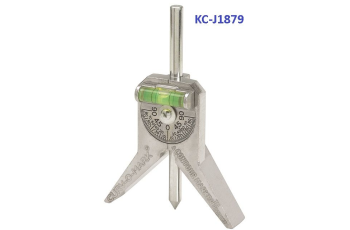

• Standard Model (KC-J1879): Fits pipe diameters 12mm (1/2 in) and larger
• Standard Head Size: 100mm (4 in)
• Standard Pin Operation: Manual use with a hammer

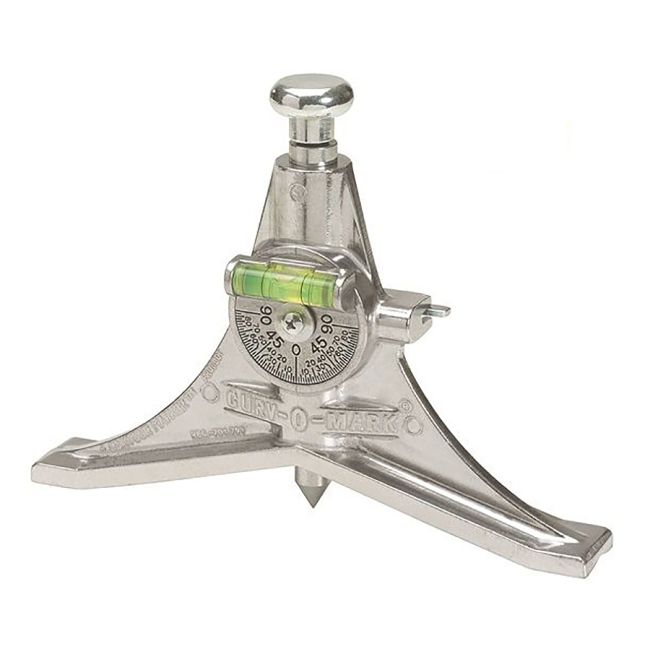

• Jumbo Model (KC-J1880): Fits pipe diameters 25mm (1 in) and larger
• Jumbo Head Size: 200mm (8 in)
• Jumbo Pin Operation: Spring-loaded, trigger-activated—no hammer required
• Protractor Model: No. DSL Adjustable Dial Bubble
• Compatible Replacement Accessory: KC-J1905 Dial Set Level (No. DSL)
