Features

• Compact and mobile fume extraction unit ideal for welding and grinding applications
• Equipped with a 3-metre extraction arm and ergonomic design for easy access to controls and filters
• Cleanable cartridge filter significantly reduces operating costs and maintains consistent airflow
• Special spark deflection plate prevents hot particles from reaching the filter, minimizing fire risk and extending filter life
• Manual in-situ filter cleaning via access door eliminates the need to remove filter, protecting the operator from fume dust
• High filtration efficiency with large 14m² nanofiber filter surface area for long-lasting performance
• Upward exhaust airflow minimizes disturbance of settled dust in the surrounding area
• Durable galvanised steel body with aluminium fan construction ensures longevity in industrial environments
• Arcrobat arm joints and hose built with materials designed to resist wear, high temperatures, and fatigue
• Lightweight yet durable suction hood provides efficient particle capture with a wide inlet
• Low operating noise at 74 dBA with built-in acoustic sponge insulation for sound dampening
• Backed by a 7-year warranty offer*

Specifications

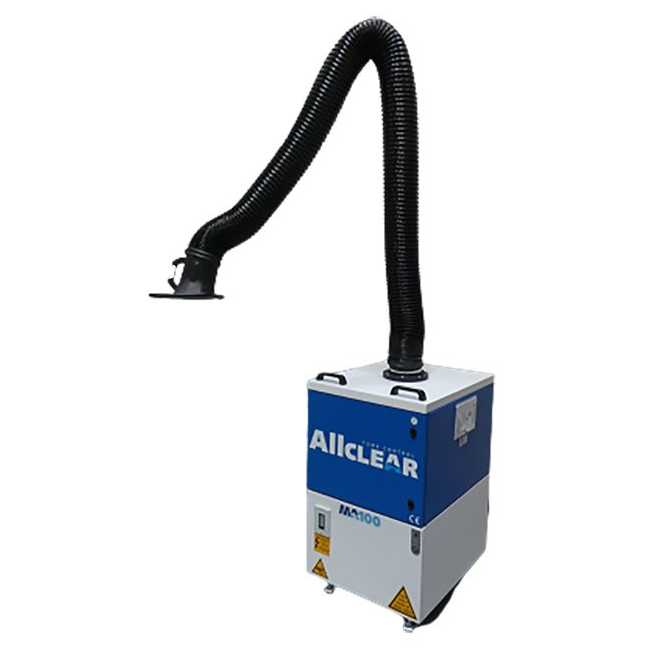

• Model: ALLCLEAR® MA100
• Power Supply: ~230V, 10A (Single Phase)
• Motor Size: 1.1 kW
• Airflow (Max): 2,500 m³/hour
• Airflow at Suction Point: 1,600 m³/hour
• Filter Type: Cleanable cartridge
• Filter Surface Area: 14 m²
• Filter Cleaning: Manual, via access door with compressed air nozzle
• Noise Level: 74 dBA
• Sound Insulation: Acoustic sponge
• Body Material: Galvanised steel
• Fan Material: Aluminium
• Arm Length: 3 metres
• Dimensions: L780 × W600 × H1000 mm
• Weight: ~110 kg
• Warranty: 7 Years (conditions apply)

Applications

• MIG Welding
• Flux-Core (FCAW) Welding
• TIG Welding
• Plasma Cutting
• Grinding
• Arc Gouging
• Note: For high-fume environments, consider MA300 AUTO or MA350 AUTO models with auto-cleaning function
