Features

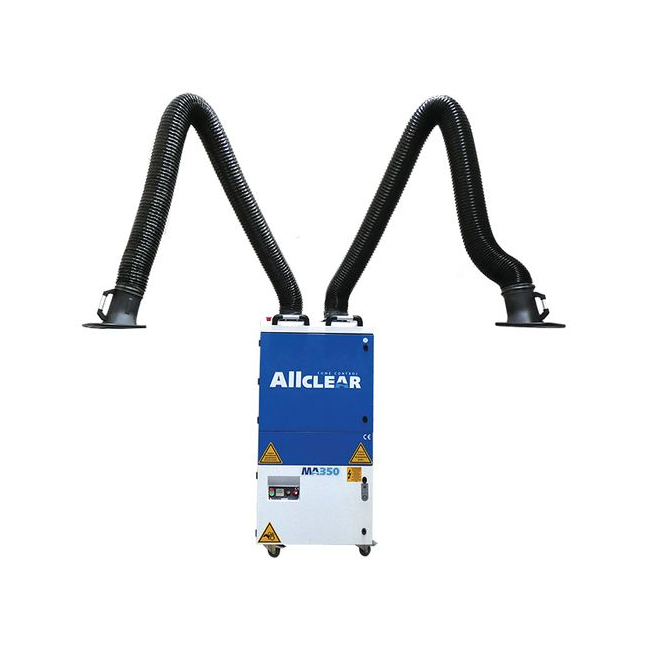

• Heavy-duty twin-arm extraction unit ideal for welding, grinding, cutting, and gouging fumes
• Operates on 415V 3-phase power for high-performance industrial use
• Twin 3-metre arms provide broad reach and minimize the need to reposition the main unit
• Automatic filter cleaning system activates on shutdown or when airflow drops, saving downtime
• Cleanable dual cartridge filters offer longer lifespan and lower operating costs compared to traditional box filters
• Pulse-cleaning system uses compressed air bursts to maintain filter condition and airflow efficiency
• Spark deflection plate redirects hot debris to a dust bin, reducing fire risk and extending filter life
• 28m² nanofiber filter surface area delivers high filtration efficiency and longer service intervals
• Patented dust collection bin enables safe removal of filtered dust while unit is running—preventing work interruption
• Exhaust air is directed upwards to reduce dust disruption in the surrounding environment
• Arcrobat arm joints and heat-resistant hoses built for durability and long-term use
• Lightweight yet tough suction hood with wide inlet for efficient fume capture
• Includes hour meter, filter fullness indicator, and malfunction warning system for user safety and efficiency
• Low operating noise at 74 dBA with integrated acoustic sponge insulation
• Compact and mobile form factor with ergonomic access to controls and filters
• Backed by a 7-Year Warranty Offer*

Specifications

• Power Supply: 3-phase 415V
• Motor Size: 2.2 kW
• Max Air Flow: 3,500 m³/hour
• Air Flow at Suction Point: 1,600 m³/hour per arm
• Filter Type: Dual cleanable cartridge filters
• Filter Surface Area: 28 m² (2 × 14 m²)
• Filter Cleaning: Automatic (requires compressed air connection)
• Air Supply Pressure Required: 3–4 bar / 300–400 kPa / 40–60 psi
• Compressor Flow Requirement: Not critical due to internal air reservoir
• Noise Level: 74 dBA
• Sound Insulation: Acoustic sponge
• Body Material: Galvanised steel
• Fan Material: Aluminium
• Dimensions: L720 × W785 × H1480 mm
• Weight: ~200 kg
• Warranty: 7 Years (conditions apply)

Applications

• MIG Welding
• Flux-Core (FCAW) Welding
• TIG Welding
• Plasma Cutting
• Grinding
• Arc Gouging
• Ideal for high-fume applications where auto-cleaning maximizes productivity and safety
