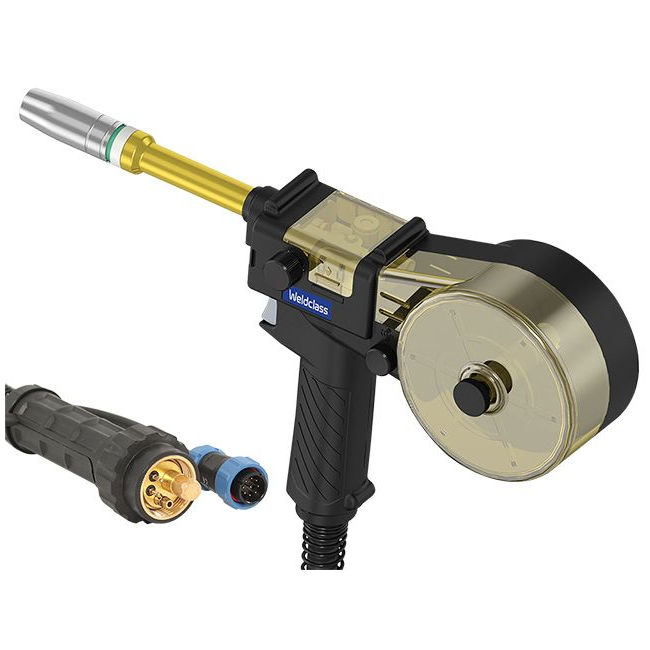

Weldclass BZL25 Complete Spool Gun 8M Euro Connection with 9-Pin Plug WC-06203
Availability:
In stock
SKU
WC-06203
$820.00
Delivery Availability
Delivery Cost & Shipping Time
Weldclass Welder MIG / Stick / TIG 10A Plug (Gasless) 180MST WF-06128
was
$899.00
Special Price
$860.00
Weldclass TIG Torch PLATINUM TK17 Super-Flex 4m (150 Amp) WC-04997
was
$219.00
Special Price
$179.00
Weldclass Parts Kit PLATINUM PX 17/18/26 Std Diameter 1.6/2.4/3.2mm WC-01662
was
$109.00
Special Price
$100.00
Features
- Complete Spool Gun with 8m lead and Euro connection for extended reach
- Designed for Weldforce MIG welders: 205MST, 255MST, 290MST, 350MST, and 395MST
- Compatible with machines featuring spool gun mode and 9-pin control plug
- Manual MIG mode operation with wire feed speed adjustable via spool gun knob
- Wire feed rate displayed directly on the welder’s LCD screen for precision control
Specifications
- Torch Style: Binzel 25 style
- Lead Length: 8 metres
- Connection Type: Euro with 9-pin plug
- Current Capacity: 230 amps
- Voltage: 24V
- Drive Roller Size: 13.4mm OD, 6.4mm ID, 14.3mm wide
Includes
- U-Groove Roller for 0.9/1.0mm Aluminium wire
- V-Groove Roller for 0.8/0.9mm Steel/Solid wire
| MPN | WC-06203 |
|---|---|
| upc | 9341562062039 |
| Manufacturer | Weldclass |
