Features

• Compact and efficient tool ideal for marking pipe and structural steel joints
• Enables fast layout of laterals, tees, wyes, elbows, crosses, and other joint types—regardless of angle or size
• Eliminates the need for complex math, guesswork, or material waste
• Versatile design allows use right side up or upside down for flexibility in any marking direction
• Precision-calibrated protractor ensures accurate angles every time
• Durable aluminium construction offers lightweight handling with long-lasting performance
• Folds into a compact form for easy storage and portability
• Structural adaptor simplifies layout for non-cylindrical shapes like I-beams, channels, and square tubing
• Holder compatible with soapstone, felt pens, or pencils—soapstone included
• Low maintenance design requires only occasional oiling for continued accuracy

Specifications

• Standard Marker: Suitable for 40mm (1-1/2 in) to 450mm (18 in) diameter pipe or steel up to 450mm wide
• Jumbo Marker: Fits 200mm (8 in) to 1200mm (48 in) diameter pipe or steel up to 1200mm wide
• Frame: X-shaped with triple-jointed marking arm and protractor holder
• Protractor: Dual calibration—degrees on one side, rise-inches-per-foot on the other

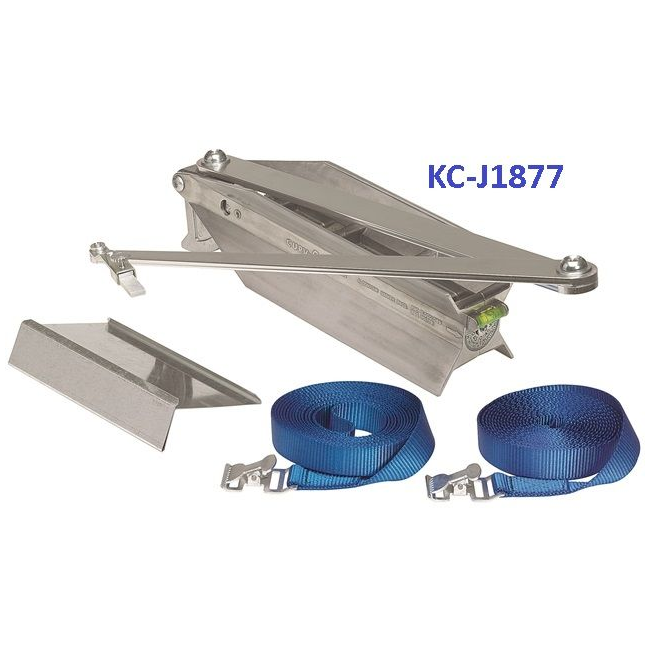

• Jumbo Model: Includes web strap and adjustable dial bubble protractor for accurate centering
• Compatible Accessories: KC-J1875/KC-J1878 Combination Adaptors, KC-J1905 Replacement Dial & Level
