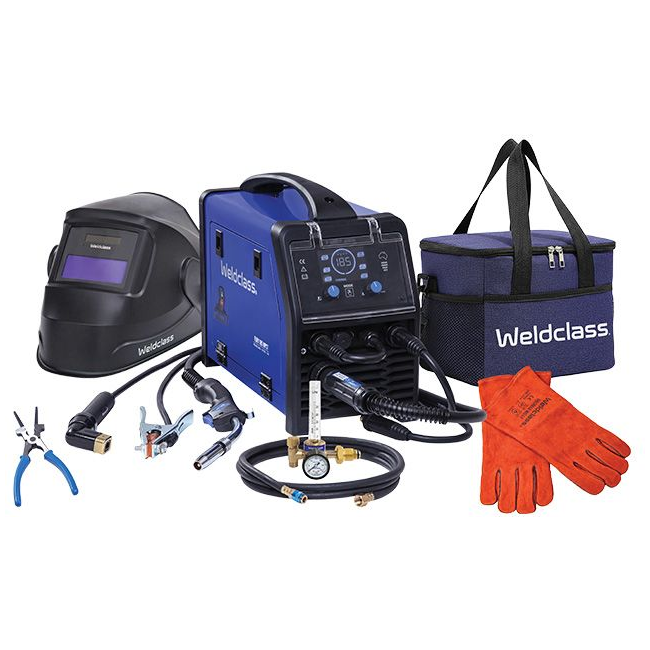

Weldclass FURY 185MPST 185Amp Pulse MIG/Stick/TIG Welder Combo Kit WFY185MK1
Availability:
In stock
SKU
WFY185MK1
was
$849.00
Special Price
$799.00
Delivery Availability
Delivery Cost & Shipping Time
Weldclass Welder MIG / Stick / TIG 10A Plug (Gasless) 180MST WF-06128
was
$899.00
Special Price
$860.00
Weldclass TIG Torch PLATINUM TK17 Super-Flex 4m (150 Amp) WC-04997
was
$219.00
Special Price
$179.00
Weldclass Parts Kit PLATINUM PX 17/18/26 Std Diameter 1.6/2.4/3.2mm WC-01662
was
$109.00
Special Price
$100.00
Features
- Delivers professional welding results from a standard 10A power supply
- Compact, powerful and easy to use
- Pulse MIG, Pulse Stick and Pulse Lift DC-TIG for greater control, reduced spatter and cleaner-looking welds
- Pulse MIG provides a smoother arc and lower heat input, ideal for aluminium, stainless and mild steel
- Spool Gun ready for easier aluminium welding
- Pulse Stick improves control in vertical and overhead positions, helping reduce sagging and burn-through
- Adjustable Pulse Lift-TIG allows fine-tuning of heat input for professional-looking welds on steel and stainless (torch optional)
- Intuitive control panel allows most settings to be used without needing the instruction manual
- Large, colour LED display
- Choice of Manual MIG or Synergic MIG operation
- Geared 2-roll wire drive system ensures smooth, positive feeding, especially important for soft wires like aluminium
- Stick/MMA and TIG pulse adjustable frequency 1-10Hz
- Over-specified heavy-duty 240A BZL24 MIG torch
- Quick-connect gas inlet fitting for fast and easy gas hose fitting and removal
- Industry-first 7-year warranty
- Suited to workshop, site, trade, farm, maintenance and serious DIY use
- Supplied as a comprehensive Value Kit with bonus helmet, gloves, MIG pliers and cooler bag
Specifications
- Output amperage: 30-185A
- Power supply: Single phase 230-240V, 3 pin, 10A domestic power
- Generator size: Minimum 8kVA, 9+kVA recommended for maximum output
- Output terminals: Large 35-50 Dinse style
- MIG duty cycle: 185A @ 10% | 76A @ 60% | 59A @ 100%
- MMA duty cycle: 160A @ 11% | 69A @ 60% | 53A @ 100%
- TIG duty cycle: 160A @ 13% | 74A @ 60% | 58A @ 100%
- Wire spool sizes: 100mm/1kg and 200mm/5kg
- Wire drive system: 2 roll, geared-drive top and bottom
- MIG feed roll size: OD 30mm x ID 22mm x width 10mm
- MIG gun type: BZL 24 x 3m
- Machine dimensions (incl. handle): 465L x 225W x 365H mm
- Machine weight: 10.5kg
- IP rating: IP21S
- Welding capacity: MIG up to 8mm mild steel, Stick up to 10mm
- Manufactured to AS 60974.1 standard
Includes
- FURY 185 MPST Machine
- PROMAX 130 Auto Darkening Helmet
- MIG Gun BZL24 x 3m
- Earth Lead & Clamp
- Stick Welding Lead with Twist-Lock holder
- Gas regulator and hose
- Welding Gloves
- MIG Pliers
- Wire Feed Rollers: Solid 0.8/0.9mm, Flux-Cored 0.8/0.9mm, Aluminium 0.9/1.0mm
- Cooler Bag
| MPN | WFY185MK1 |
|---|---|
| Manufacturer | Weldclass |
