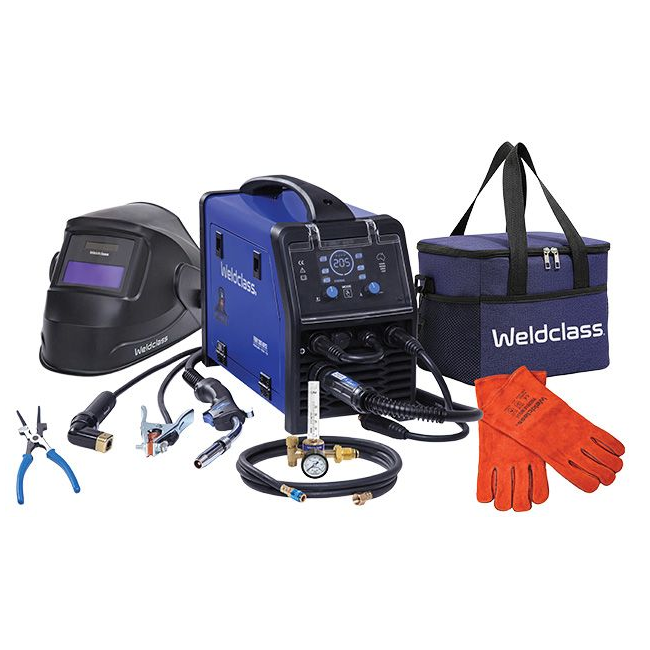

Weldclass FURY 205MPST 205Amp Pulse MIG/Stick/TIG Welder Combo Kit WFY205MK1
Availability:
In stock
SKU
WFY205MK1
was
$949.00
Special Price
$899.00
Delivery Availability
Delivery Cost & Shipping Time
Weldclass Welder MIG / Stick / TIG 10A Plug (Gasless) 180MST WF-06128
was
$899.00
Special Price
$860.00
Weldclass TIG Torch PLATINUM TK17 Super-Flex 4m (150 Amp) WC-04997
was
$219.00
Special Price
$179.00
Weldclass Parts Kit PLATINUM PX 17/18/26 Std Diameter 1.6/2.4/3.2mm WC-01662
was
$109.00
Special Price
$100.00
Features
- Packs serious Pulse performance from a standard 10A power supply
- Designed for greater output and capability
- Pulse MIG, Pulse Stick and Pulse Lift DC-TIG for superior arc control, reduced spatter and outstanding weld appearance
- Pulse MIG delivers a smooth, low-heat arc, excellent for aluminium, stainless and mild steel
- Spool Gun ready for enhanced aluminium performance
- Pulse Stick improves positional welding control and gap-bridging ability
- Adjustable Pulse Lift-TIG provides refined heat control for high-quality welds on steel and stainless (torch optional)
- Intuitive control panel allows most settings to be used without needing the instruction manual
- Large, colour LED display
- Choice of Manual MIG or Synergic MIG operation
- Geared 2-roll wire drive system ensures strong, consistent wire feed performance
- Stick/MMA and TIG pulse adjustable frequency 1-10Hz
- Over-specified heavy-duty 240A BZL24 MIG torch
- Quick-connect gas inlet fitting for fast and easy gas hose fitting and removal
- Industry-first 7-year warranty
- Ideal for heavier workshop and site applications
- Supplied as a comprehensive Value Kit with bonus helmet, gloves, MIG pliers and cooler bag
Specifications
- Output amperage: 30-205A
- Power supply: Single phase 230-240V, 3 pin, 10A domestic power
- Generator size: Minimum 8kVA, 10+kVA recommended for maximum output
- Output terminals: Large 35-50 Dinse style
- MIG duty cycle: 205A @ 9% | 79A @ 60% | 62A @ 100%
- MMA duty cycle: 170A @ 10% | 69A @ 60% | 54A @ 100%
- TIG duty cycle: 170A @ 13% | 79A @ 60% | 61A @ 100%
- Wire spool sizes: 100mm/1kg and 200mm/5kg
- Wire drive system: 2 roll, geared-drive top and bottom
- MIG feed roll size: OD 30mm x ID 22mm x width 10mm
- MIG gun type: BZL 24 x 3m
- Machine dimensions (incl. handle): 465L x 225W x 365H mm
- Machine weight: 10.7kg
- IP rating: IP21S
- Welding capacity: MIG and Stick up to 12mm
- Manufactured to AS 60974.1 standard
Includes
- FURY 205 MPST Machine
- PROMAX 130 Auto Darkening Helmet
- MIG Gun BZL24 x 3m
- Earth Lead & Clamp
- Stick Welding Lead with Twist-Lock holder
- Gas regulator and hose
- Welding Gloves
- MIG Pliers
- Wire Feed Rollers: Solid 0.8/0.9mm, Flux-Cored 0.8/0.9mm, Aluminium 0.9/1.0mm
- Cooler Bag
| MPN | WFY205MK1 |
|---|---|
| upc | 9341562067584 |
| Manufacturer | Weldclass |
