Features

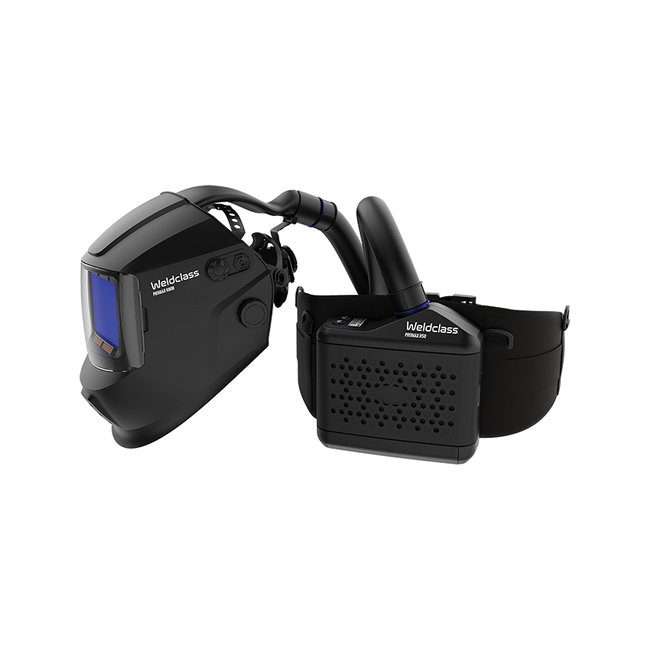

• Includes the PROMAX 680R auto-darkening helmet and PROMAX R50 PAPR blower unit with comprehensive accessories
• Large 95cm² viewing area in a landscape format (116mm × 82mm) offers a wide, natural field of view
• Top-tier V1 (1/1/1/1) optics with enhanced colour recognition and digital LCD controls
• External control access for instant shade, mode, and function adjustments without lifting helmet
• Multiple operating modes: welding (shade 9–14), cutting (shade 4–8), grinding (shade 3 lock), and memory storage for up to 9 user profiles
• Auto or manual controls for shade, delay, and sensitivity, with features like gradient mode and tack mode to reduce eye strain
• High-impact resistant and compliant with AS/NZS 1337.1 and AS/NZS 1338.1 standards
• Comfort-enhanced wraparound headgear with molded pressure pad and easy lens replacement system
• Auto-on/off functionality for convenience and energy efficiency
• Full-laminate lens construction for superior durability and long service life
• PROMAX R50 PAPR unit features a TH3-class 3-stage filtration system for ≥99.8% air purity
• Carbon prefilter helps remove nuisance-level odours
• 3 airflow speeds (170, 200, 230 L/min) and Li-ion battery delivers up to ≥10 hours runtime
• Audio, visual, and vibration alerts notify of filter clogs or restrictions
• Adjustable 4-point harness can be worn with or without shoulder straps for comfort
• Respirator system complies with AS/NZS 1716
• Helmet only weight: 860g; Full system weight: 1.79kg

Specifications

• Helmet Viewing Area: 116mm × 82mm (95cm²)
• Optics Rating: 1/1/1/1
• Lens Control: Digital LCD with external access
• Operating Modes: Weld (shade 9–14), Cut (shade 4–8), Grind (shade 3 lock)
• Memory: Stores up to 9 user settings
• Delay: Auto or manual (0.1–1.0s)
• Gradient Mode: Enabled
• Sensitivity: 0–9 (auto or manual)
• Weight (Helmet only): 860g
• Weight (Helmet + Respirator): 1.79kg
• Respirator Airflow: 170, 200, 230 L/min
• Filter Type: 3-stage (main filter, prefilter, spark filter)
• Filter Class: TH3 (≥99.8% air purity)
• Battery Life: ≥10 hours @ 170 L/min; ≥6 hours @ 230 L/min
• Respirator Weight: 930g
• Compliance: AS/NZS 1337.1, 1338.1, 1716
• Helmet Warranty: 7 years (on electronic lens)
• Respirator Warranty: 2 years (blower), 1 year (battery)

Applications

• MIG Welding
• Stick Welding
• TIG Welding (down to 5 amps)
• Grinding
• Plasma Cutting
• Oxy Cutting
• Brazing and Heating
• Arc Gouging

Includes

• 1 × PROMAX 680R PAPR Helmet
• 1 × PROMAX R50 PAPR Respirator Blower Unit with Battery
• 1 × Battery Charger
• 1 × Waist & Shoulder Belt/Harness
• 1 × Hose with Flame-Resistant Cover
• 1 × Clear Lens Starter Pack
• 1 × Air Flow Meter/Tester
• 1 × Heavy-Duty Carry Bag
