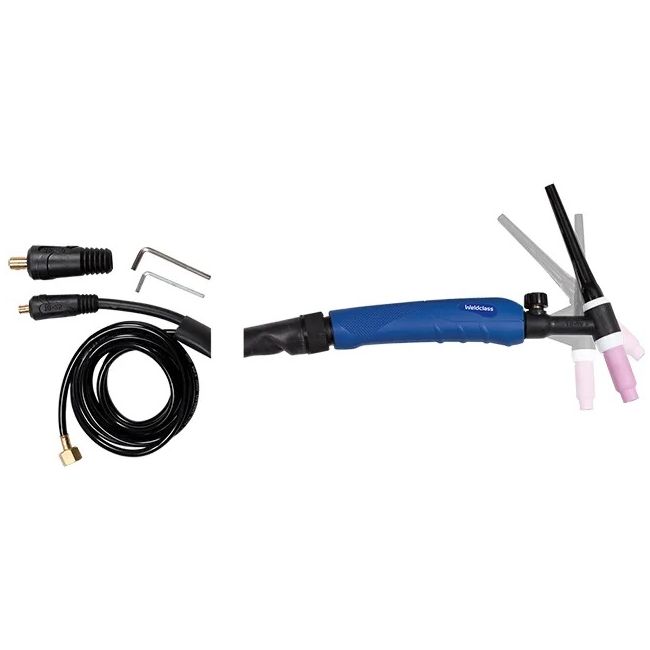

Weldclass TIG Torch with Valve - 17FV Series (150 Amp) WC-00992
Availability:
In stock
SKU
WC-00992
was
$129.00
Special Price
$99.00
Delivery Availability
Delivery Cost & Shipping Time
Weldclass Welder MIG / Stick / TIG 10A Plug (Gasless) 180MST WF-06128
was
$899.00
Special Price
$860.00
Weldclass TIG Torch PLATINUM TK17 Super-Flex 4m (150 Amp) WC-04997
was
$219.00
Special Price
$179.00
Weldclass Parts Kit PLATINUM PX 17/18/26 Std Diameter 1.6/2.4/3.2mm WC-01662
was
$109.00
Special Price
$100.00
Features
- Key Features
- > 7-Year Warranty*
- > Made in Europe*
- > Includes standard "10-25" and large "35-50" connectors, ready to fit to most standard inverter welders
- > Modern ergonomic Handle with Ball Joint to allow easy handling of the torch
- What Else ?
- > Flexible torch head
- > Valved style heads for use with most standard inverter welders
- > 2-piece style cable with protective cable sheath fitted
- > Includes parts kits & tungsten electrodes "ready to weld"
- Application Info:
- > 150 amp max capacity
- > Suitable for use with tungsten electrodes up to 2.4mm, and for welding materials up to approx' 3mm thickness
- > Designed for fitting to standard inverter welding machines which do NOT have special control-plug or gas hose connections. The gas hose on the TIG torch is connected directly to the gas regulator (on the gas cylinder) and gas flow is controlled via the valve on the TIG torch head.
- Parts Fitted To The Torch:
- 1 x 57Y02 Long Back Cap
- 1 x 10N23 1.6mm Collet
- 1 x 10N31 1.6mm Collet Body
- 1 x 10N47 'Alumina' Cup
- 1 x Tungsten Electrode 1.6mm - DC type, Thoriated Red-Tip
- Additional Parts Supplied With The Torch:
- 1 x 10N24 2.4mm Collet
- 1 x 10N32 2.4mm Collet Body
- 1 x Tungsten Electrode 2.4mm - DC type, Thoriated Red-Tip
| MPN | WC-00992 |
|---|---|
| upc | 9341562009928 |
| Manufacturer | Weldclass |
