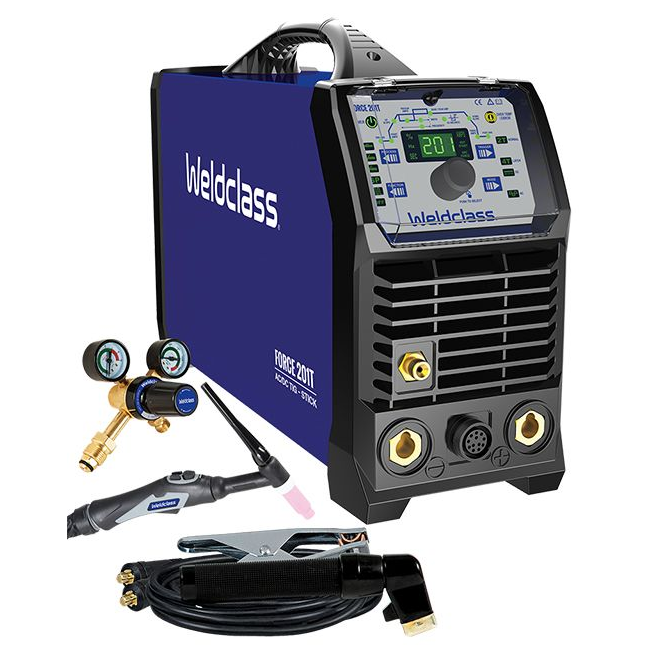

Weldclass Weldforce 201T AC/DC Pulse TIG Welder WF-06172
Availability:
In stock
SKU
WF-06172
$1,799.00
Delivery Availability
Delivery Cost & Shipping Time
Weldclass Welder MIG / Stick / TIG 10A Plug (Gasless) 180MST WF-06128
was
$899.00
Special Price
$860.00
Weldclass TIG Torch PLATINUM TK17 Super-Flex 4m (150 Amp) WC-04997
was
$219.00
Special Price
$179.00
Weldclass Parts Kit PLATINUM PX 17/18/26 Std Diameter 1.6/2.4/3.2mm WC-01662
was
$109.00
Special Price
$100.00
Features
- Ideal for professional TIG welding on Aluminium, Mild Steel, Stainless Steel, and more
- Delivers up to 200A output (AC) at 30% duty cycle
- Extremely lightweight and portable at just 8kg
- Market-leading 7-year warranty for long-term reliability
- Dual welding modes: AC/DC TIG and Stick/MMA
- HF or Lift-Arc ignition for flexible arc starting
- Advanced pulse controls: frequency (0.2–200Hz) and width adjustment
- Customizable slope up/down and gas control settings
- AC Balance control for adjustable penetration vs cleaning
- AC Frequency set to 50Hz
- Remote current control via TIG torch handle or optional foot pedal
- LCD digital display for easy control and monitoring
- IP23-rated for improved protection against dust and moisture
- Tested up to 440V with premium internal components
- Generator compatible – minimum 8kVA, ideally 10kVA+
Specifications
- Output: 200A max (AC) at 30% duty cycle
- Plug: 15A, 240V fitted
- Compatible tungsten sizes: up to 3.2mm
- Weight: 8kg
- Protection rating: IP23
- Power input lead: 3m with 15A plug
- Pulse Frequency Range: 0.2 – 200Hz
- Slope Up/Down Time: 0–10s
- Pre-Gas Flow: 0–2s
- Post-Gas Flow: 0–10s
- AC Balance Adjustment: -5 (25%) to +5 (50%)
Includes
- 8m #26 Flexi TIG Torch with remote control
- 4m Earth Lead
- 4m Stick Lead
- Gas Regulator
- Shoulder Strap
- Cable Strap for tidy lead management
- 3m Long Power Input Lead with 15A plug
- Parts Kit with Tungstens (1.6mm, 2.4mm, 3.2mm)
| MPN | WF-06172 |
|---|---|
| Manufacturer | Weldclass |
