Features

• Compact, time-saving tool used for lay out marking of pipe and structural steel joints. Quickly and precisely make cut/joint markings at any angle - for laterals, tees, wyes, crosses, elbows & more. Available in standard or jumbo models. Click on 'Video' to view a demonstration.
• Why Choose Jackson Contour Markers ?
• Compact, time-saving tool used for lay out marking of pipe and structural steel joints.
• Laterals at any angle, tees, wyes, crosses, elbows - any type or size of joint can be quickly and precisely laid out
• No more complicated formulas, trial and error, or wasted materials
• Application Info:
• What Else ?

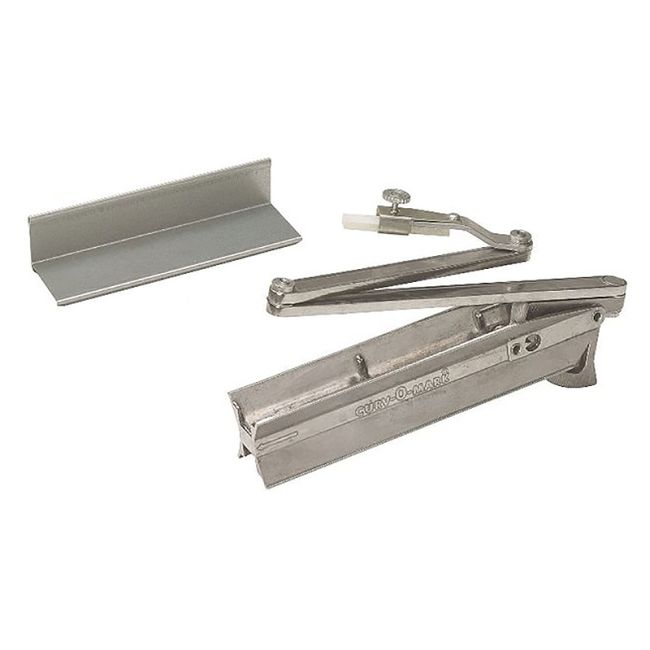

• Contour Marker consists of: X-shaped frame, calibrated protractor, triple jointed marking arm and holder
• Jumbo model comes with web strap to hold the unit in place during layout and built-in adjustable dial bubble protractor level for accurate center line location
• Comes with a Structural Adaptor designed to simplify the layout of structural joints, including l-beams, angles, channels, square tube and similar shapes.
• Holder accepts a soapstone crayon (included), felt pen or pencil
• Frame easily folds into a compact toolkit
• Protractor is calibrated on both sides-one in degrees, the other in rise inches-per-foot-to service any type of measurement need.
• Made from durable, lightweight aluminium
• Requires minimal maintenance, only occasional oiling of joints, to provide long service life
• Related Accessories:
• Optional Combination Adaptor KC-J1875 standard No.2 / KC-J1878 Jumbo No.5 allows lay out joints on larger size pipe, as well as marking compound angles with just one setting
• Replacement dial & level for No. 4 Jumbo Marker: KC-J1905
• WELDCLASS is the official Australian distributor for Jackson Contour Curv-O-Mark products.

Specifications

• Standard marker: Use for 40mm (1-1/2 in) to 450mm (18 in) diameter pipe, or structural steel members up to 450mm (18 in) wide
• Jumbo marker: Use for 200mm (8 in) to 1200mm (48 in) diameter pipe, or structural steel members up to 1200mm (48 in) wide
• Can be used right side up or upside down, depending on the direction of the line to be marked
