Specifications

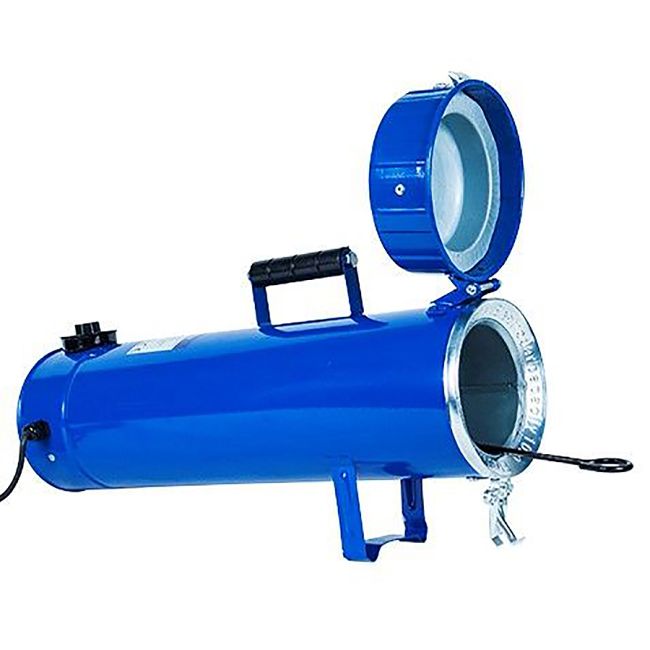

• If you need 10kg capacity, you'll find the new oven considerably lighter, more compact and more portable than many others on the market. Adjustable temperature 50-200c. Keeps electrodes moisture-free for optimum weld quality and electrode performance.
• Cylindrical shaped chamber keeps electrodes in better condition & avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged).
• Why Use Weldclass Electrode Oven ?
• Keeps electrodes moisture-free for optimum weld quality and electrode performance
• 5-10kg capacity (two models in one)
• Cylindrical Chamber keeps electrodes in better condition & avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged)
• Lightweight (4.5kg) = Reduced strain on operator
• "two Models IN One"
• Designed to suit users that are looking for either 5kg or 10kg capacity.
• Weight, size & portability is comparible to most 5kg ovens, but with the capacity to fit 10kg if required
• Considerably lighter, more compact and more portable than most other 10kg models
• Application Info:
• Commonly used with Low-Hydrogen electrodes, to eliminate moisture contamination & maintain electrode mechanical properties
• Suitable for all types of electrodes
• What Else ?
• Variable temperature control 50-200c
• Over-centre latch to hold lid firmly shut
• Protected temperature control knob
• Insulated lid for improved temperature stability
• Overall dimensions: 600 x 300 x 160mm including handle and foot
• Shipping Weight / Dimensions: 5.5kg 280 x 180 x 620mm
• Galvanised internal chamber for durability
• Internal chamber size: 105 dia x 470mm
• Fits electrodes up to 500mm long
• Power supoply: 240v 10A
• Heating element: 285W
• Weight: 4.5kg
• Approvals / Conformance: CE EN 61000: 6-1, 6-3, 3-2, 3-3
