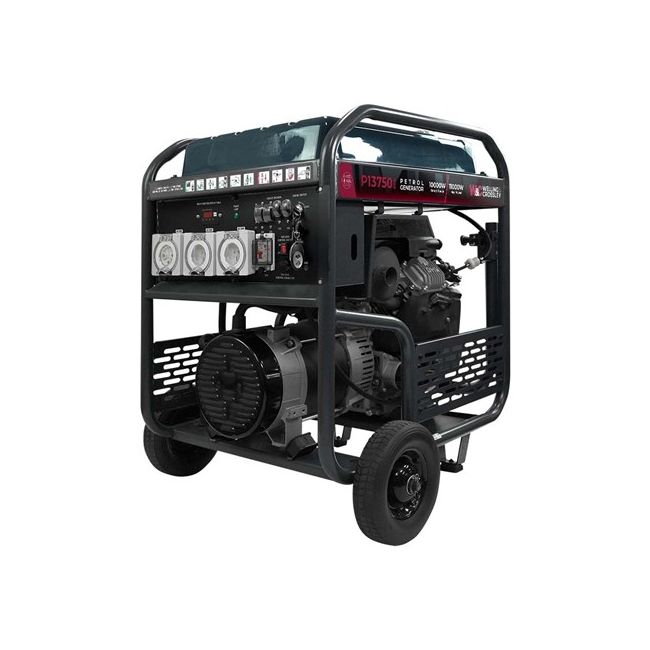

Welling & Crossley 13.75 kVA Open Frame AVR Petrol Generator E-Start & RCD WC-P13750RCD

Features

• Equipped with an RCD (Residual Current Device) for enhanced safety, protecting against electrical faults and potential shocks.
• AVR (Automatic Voltage Regulator) ensures stable and consistent voltage output, safeguarding sensitive electronics.
• 2-wire remote start capability for automatic starting via ATS, float switch, or other remote devices.
• Fuel-efficient design provides longer run times with reduced refuelling needs.
• Compliant with Euro 5 emissions standards for environmentally responsible operation.
• Multiple start options: push-button electric start, wireless remote start, 2-wire remote start, and manual recoil.
• Large 45L fuel tank supports extended run times, ideal for prolonged use.
• Heavy-duty wheels, handle, and lifting bar ensure easy transportation and vertical mechanical lifting.
• Digital V/F/T 3-in-1 display for real-time monitoring of volts, frequency, and time.
• Powerful and efficient twin-cylinder, 4-stroke, OHV air-cooled engine for reliable performance.

Specifications

• Brand: Welling & Crossley
• Product Type: Portable Generator
• Generator Type: Open Frame AVR with RCD
• Generator Rating: 13.75kVA
• Max AC Output: 11,000W
• Rated AC Output: 10,000W
• Voltage: 240V AC
• Frequency: 50Hz
• Connections:
  • 2 x IP66 15A
  • 1 x IP66 32A
  • 1 x USB-A (18W)
  • 1 x USB-C (15W)
• Engine: WC-690, twin-cylinder, 4-stroke, OHV air-cooled petrol
• Displacement: 688cc
• Speed: 3000rpm
• Fuel Tank Capacity: 45L
• Fuel Consumption: 2.2 L/hr at 25% load
• Noise Level @ 7m: ＜90dBA
• Operating Time at 25% Load: 27 hours
• Dry Weight: 160kg
• Dimensions: 810 x 640 x 920mm
• Packaging Dimensions: 790 x 620 x 790mm
• Oil: 1.5L SAE10W-30
• Spark Plug: NGK BPR6ES
• Fuel Type: Petrol - 91 octane unleaded
• Power Factor: 0.8

Warranty

• Limited Warranty: 2 Years
