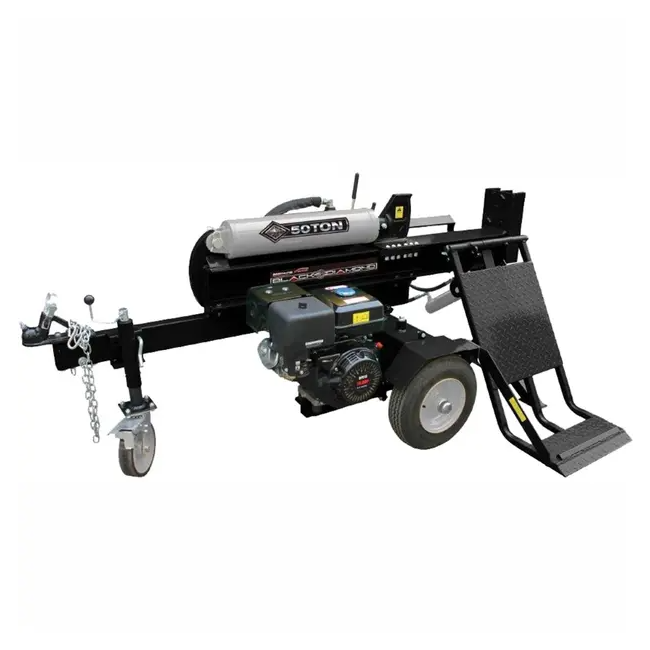

Black Diamond 50T Manual Start Log Splitter with Hydraulic Lift Table LS50LTBD
Powered by a 15 horsepower, 4-stroke, air-cooled petrol engine with manual recoil start for reliable, cord-free operation. Delivers up to 50 tons of splitting force, tackling even the toughest Australian hardwoods with ease. 200mm wearproof hardened cast steel wedge outperforms smaller wedges found on comparable splitters, offering superior strength and efficiency. Fast 18-second cycle time (split and return) keeps productivity high and effort low. Splits logs up to 55cm long and 305mm in diameter. Horizontal working position designed for stable, controlled splitting. Hydraulic lifting table makes loading and unloading logs effortless, reducing strain on your back. Auto return valve automatically retracts the ram once the lever is released, streamlining the splitting process. 16-inch pneumatic tyres and a 50mm cast steel coupler with safety chains allow for easy towing to wherever the timber is. 8" x 2" quick-release jockey wheel simplifies manoeuvring around the property. Towable at speeds up to 72 km/h for private property use. 2-stage gear pump and heavy-duty 5" x 19.4" hydraulic cylinder build pressure quickly, cutting down splitting time. Built-in safety features include the auto return valve, safety relief function, and safety chains for secure, confident operation. Engine: 15 horsepower, 4-stroke, OHV, air-cooled, manual (recoil) start. Maximum Splitting Force: 50 Ton. Cylinder Size: 127mm diameter x 493mm stroke (5" x 19.4"). Pump: 2-stage gear pump, 11 GPM. Hydraulic Oil: Supplied with 20 Litres OSO46 Oil. Hydraulic Lifting Table Capacity: 150kg. Wedge Height: 200mm hardened cast steel. Cycle Time: 18 seconds (split and return). Log Length Capacity: Up to 550mm. Log Diameter Capacity: Up to 305mm. Working Position: Horizontal only. Wheels: 16" pneumatic tyres. Jockey Wheel: 200mm x 50mm (8" x 2"). Coupler: 50mm cast steel with safety chains. Maximum Towing Speed: 72 km/h (private property use only). Package Dimensions: 173cm x 52cm x 105cm. Package Weight: 357kg. Shipping Weight: 357kg.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Powered by a 15 horsepower, 4-stroke, air-cooled petrol engine with manual recoil start for reliable, cord-free operation.
- Delivers up to 50 tons of splitting force, tackling even the toughest Australian hardwoods with ease.
- 200mm wearproof hardened cast steel wedge outperforms smaller wedges found on comparable splitters, offering superior strength and efficiency.
- Fast 18-second cycle time (split and return) keeps productivity high and effort low.
- Splits logs up to 55cm long and 305mm in diameter.
- Horizontal working position designed for stable, controlled splitting.
- Hydraulic lifting table makes loading and unloading logs effortless, reducing strain on your back.
- Auto return valve automatically retracts the ram once the lever is released, streamlining the splitting process.
- 16-inch pneumatic tyres and a 50mm cast steel coupler with safety chains allow for easy towing to wherever the timber is.
- 8" x 2" quick-release jockey wheel simplifies manoeuvring around the property.
- Towable at speeds up to 72 km/h for private property use.
- 2-stage gear pump and heavy-duty 5" x 19.4" hydraulic cylinder build pressure quickly, cutting down splitting time.
- Built-in safety features include the auto return valve, safety relief function, and safety chains for secure, confident operation.
Specifications
- Engine: 15 horsepower, 4-stroke, OHV, air-cooled, manual (recoil) start
- Maximum Splitting Force: 50 Ton
- Cylinder Size: 127mm diameter x 493mm stroke (5" x 19.4")
- Pump: 2-stage gear pump, 11 GPM
- Hydraulic Oil: Supplied with 20 Litres OSO46 Oil
- Hydraulic Lifting Table Capacity: 150kg
- Wedge Height: 200mm hardened cast steel
- Cycle Time: 18 seconds (split and return)
- Log Length Capacity: Up to 550mm
- Log Diameter Capacity: Up to 305mm
- Working Position: Horizontal only
- Wheels: 16" pneumatic tyres
- Jockey Wheel: 200mm x 50mm (8" x 2")
- Coupler: 50mm cast steel with safety chains
- Maximum Towing Speed: 72 km/h (private property use only)
- Package Dimensions: 173cm x 52cm x 105cm
- Package Weight: 357kg
- Shipping Weight: 357kg
- MPN
- LS50LTBD
- Manufacturer
- Millers Falls
